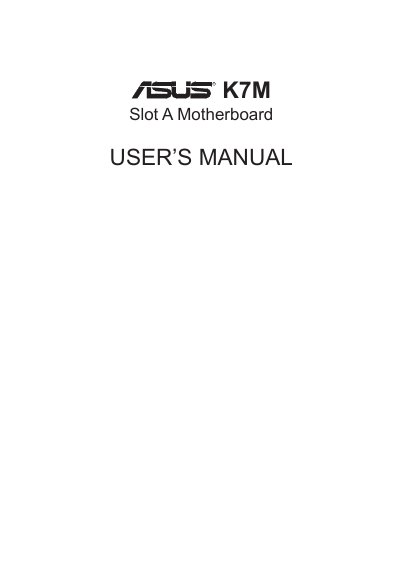

ASUS K7M Motherboard User Manual
This manual covers the ASUS K7M motherboard, detailing its features, hardware layout, and required components. It includes checklists, specifications, and optional accessories such as audio, infrared, and USB extensions.
The guide walks users through hardware installation, BIOS configuration, operating‑system setup, and included software utilities. An appendix provides details on the optional ASUS PCI‑L101 Fast Ethernet card and Wake‑On‑LAN functionality.
ASUS K7M specifications
| CPU Socket | AMD Athlon Slot‑A (242‑pin) |
|---|---|
| Memory Type | PC‑100 SDRAM DIMM |
| Maximum Memory | 768 MB |
| AGP Support | AGP 2.0, 1X/2X modes |
| PCI Slots | 4 × PCI 2.2 (up to 133 MB/s) |
| UART Ports | 2 × high‑speed UART |
| Temperature Sensor Header | Provided |
All ASUS K7M documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What power supply is recommended for the K7M motherboard?
A minimum 200‑watt (235 W for full configuration) ATX power supply is strongly recommended.
How many USB ports does the motherboard provide?
The board supports up to four USB ports, two on the rear panel and two optional mid‑board ports.
What CPU socket does the ASUS K7M motherboard support?
It supports AMD Athlon processors using a 242‑pin Slot‑A module.
What type of memory can be installed and what is the maximum capacity?
The board uses PC‑100 SDRAM DIMM modules and can be expanded up to 768 MB.
