Key facts
- Brand
- ASUS
- Model
- A7V400-MX
- Category
- Motherboard
- Industry
- Computers
- Documents
- 2
- Languages
- EN · ZH
- Last added
- 2012-05-04
Start here

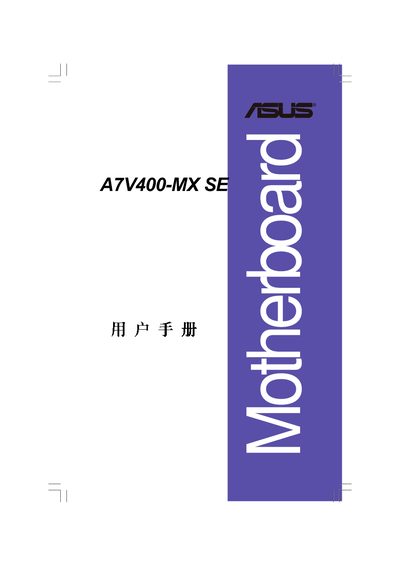

ASUS A7V400-MX SE Motherboard User Manual
This manual provides an overview of the ASUS A7V400-MX SE motherboard, safety precautions, and basic hardware description. It guides users through installation steps, jumper settings, and component connections.
Later sections cover BIOS configuration, driver installation, utility programs, and troubleshooting tips. Links to ASUS web resources for BIOS updates and driver downloads are also included. This manual is written in Chinese.
ASUS A7V400-MX specifications
| CPU socket | Socket A for AMD Athlon™ XP up to 2.254 GHz |
|---|---|
| Memory slots | 2 × 184‑pin DDR DIMM sockets, up to 2 GB total |
| Supported memory types | Unbuffered PC2700/2100/1600 non‑ECC DDR SDRAM |
| Expansion slots | 3 × PCI, 1 × AGP 8X/4X (1.5 V only) |
| Integrated graphics | VIA UniChrome™ Graphics |
| Audio codec | AD1980 6‑channel SoundMAX audio codec |
| Ethernet controller | VIA VT6103 10/100 Mbps Ethernet PHY |
| IEEE‑1394 controller | VIA VT6307, two 1394 ports |
| USB ports | 2 × USB 2.0/1.1 on board, plus 2 connectors for four additional USB 2.0 ports |
| Rear panel I/O | Parallel, Serial, PS/2 keyboard, PS/2 mouse, RJ‑45, Audio I/O, VGA, 2 × USB 2.0/1.1 |
All ASUS A7V400-MX documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How can I update the BIOS on the ASUS A7V400-MX motherboard?
Use the ASUS Update utility, which updates the BIOS and drivers and requires an Internet connection.
What safety steps should be taken before installing the motherboard?
Disconnect the power cable, ensure all cables are unplugged before connecting signal cables, avoid short circuits, keep the system on a stable surface, and seek professional help for power‑supply issues.
Where can I download the latest BIOS for the A7V400-MX SE?
You can obtain the latest BIOS from the ASUS website (http://www.asus.com,cn) using the ASUS Live Update utility.
