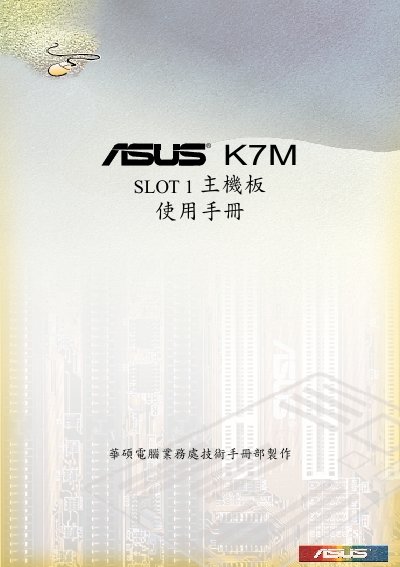

K7M SLOT 1 Motherboard User's Manual, introduces product specifications, installation, usage methods, etc.
This manual covers the ASUS K7M Slot‑1 motherboard, detailing its features, hardware installation steps, BIOS configuration, and software utilities. It includes safety notices, part lists, and troubleshooting guidance.
Key sections describe the supported AMD Athlon processor, memory specifications, expansion slots, power requirements, and built‑in diagnostics, helping users assemble and configure the system correctly. This manual is written in Chinese.
| CPU Socket | AMD Athlon Slot‑A (242‑pin) |
|---|---|
| Memory Type | PC‑100 SDRAM DIMM |
| Maximum Memory | 768 MB |
| AGP Support | AGP 2.0, 1X/2X modes |
| PCI Slots | 4 × PCI 2.2 (up to 133 MB/s) |
| UART Ports | 2 × high‑speed UART |
| Temperature Sensor Header | Provided |
It supports AMD Athlon processors using a 242‑pin Slot‑A module.
The board uses PC‑100 SDRAM DIMM modules and can be expanded up to 768 MB.
There are four PCI 2.2 slots, each supporting up to 133 MB/s transfer rates.
