Key facts
- Brand
- ASUS
- Model
- A7N8X-VM
- Category
- Motherboard
- Industry
- Computers
- Documents
- 3
- Languages
- EN · ZH
- Last added
- 2012-05-04
Start here

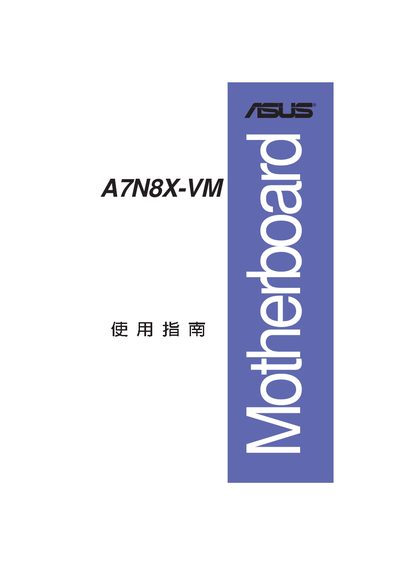

ASUS A7N8X-VM Motherboard User Manual
This manual covers safety precautions for handling the motherboard, including power‑off procedures, static‑discharge warnings, and proper connector handling. It then guides you through pre‑installation checks, component placement, and step‑by‑step installation of the A7N8X‑VM board.
The guide also explains BIOS update methods using EZ Flash, details BIOS configuration menus, and describes the supported interfaces such as AGP 8X, FC1, and PCI. Contact information for ASUS technical support and online resources is provided at the end of the document. This manual is written in Chinese.
ASUS A7N8X-VM specifications
| Northbridge | NVIDIA nFORCE2 IGP |
|---|---|
| Southbridge | NVIDIA nFORCE2 MCP |
| Front Side Bus | 333 MHz |
| CPU Socket | Socket A for AMD Athlon / Athlon XP |
| Maximum Memory | 2 GB unbuffered PC2700/2100 DDR |
| AGP Slot | 1 x AGP 8X (1.5 V only) |
| USB Ports | 2 x USB 2.0, 2 x USB 1.1 |
| Form Factor | Micro‑ATX (9.6 in × 8.6 in) |
All ASUS A7N8X-VM documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What safety step should be taken before relocating the system?
Disconnect the power cable from the electrical outlet to prevent electrical shock.
How can I update the BIOS on the A7N8X-VM motherboard?
Use the EZ Flash utility from within the BIOS or run the ASUS online update program to flash the latest BIOS version.
Where can I get technical support for the ASUS A7N8X-VM motherboard?
Contact ASUS support via the phone numbers listed (e.g., 02‑25062558) or visit the ASUS support website for online resources and service centers.
What type of CPU does the ASUS A7N8X-VM/400 support?
It supports AMD Athlon XP processors using Socket A, up to 2700 MHz.
How many USB ports are available on the motherboard?
The board provides four USB 2.0/1.1 ports and an extra connector for two additional USB 2.0 ports.
