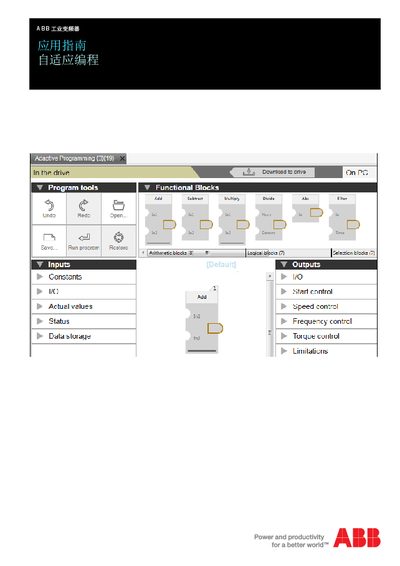

ABB ACS880 Industrial Inverter Adaptive Programming Application Guide

About this manual

The application guide introduces adaptive programming for ABB ACS880 drives, describing its purpose, required software (Drive Composer Pro 1.9+), and compatibility with firmware version 2.20 or later. It outlines the steps to create, download, and manage adaptive programs, including connecting to the inverter, executing, disabling, and backing up programs.

The document also details the available function blocks, input and output definitions, and provides specifications such as the maximum number of function blocks (20) and the use of predefined system I/O. Additional sections cover safety instructions, target audience, and references to related manuals and ABB service resources. This manual is written in Chinese.

What's inside

• Guide Introduction
• Adaptive Programming Overview
• Using PC Tool Interface
• Program Elements
• Function Block Specifications
• I/O
• Start Control
• Speed Control
• Frequency Control
• Torque Control

Specifications

Frequently asked questions

How many function blocks can be used in an adaptive program?

An adaptive program can use up to 20 standard function blocks, depending on the block types and predefined inputs/outputs.

How can the adaptive program be disabled?

The adaptive program can be disabled by setting parameter 96.70 (Disable Adaptive Program).

What software is required to create and download adaptive programs?

Drive Composer Pro version 1.9 or higher is required to create and download adaptive programs to the ACS880 inverter.
