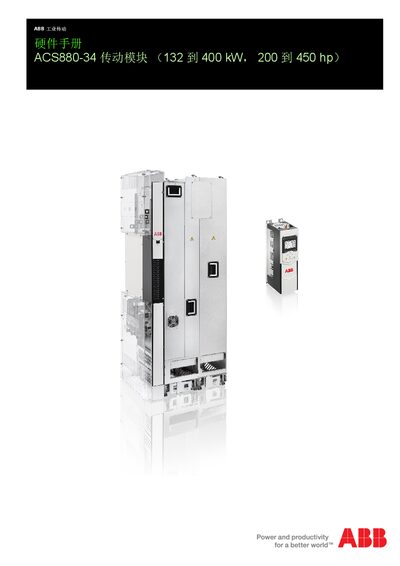

The ABB ACS880-34 hardware manual provides safety instructions, installation guidelines, wiring diagrams, and maintenance procedures for the drive module.
This manual covers the safety requirements and general precautions for handling the ACS880-34 drive, including electrical safety, grounding, and protection measures. It also introduces the document’s purpose, target audience, and provides an overview of the drive’s operation principle and hardware layout.
Detailed sections guide the user through cabinet planning, electrical installation, wiring, commissioning, fault tracking, and routine maintenance. Technical data, specifications, and ordering information are included to support proper selection and configuration of the drive system. This manual is written in Chinese.
| Power rating | 132 to 400 kW (200 to 450 hp) |
|---|---|
| Input voltage range | 380‑415 V (type‑3), 380‑500 V (type‑5), 525‑690 V (type‑7) |
| Rated input voltage | 400 V AC |
The ACS880-34 is rated for 132 to 400 kW (200 to 450 hp).
