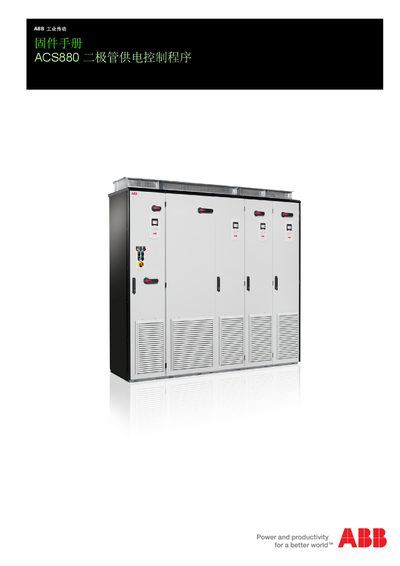

This ABB ACS880 firmware manual describes the diode power supply control program, covering startup, parameters, diagnostics, and fieldbus control.
The manual provides a comprehensive guide for the ACS880 diode‑powered control program. It includes an introduction, safety information, and detailed sections on startup, control‑panel operation, program functions, parameter settings, additional data, fault tracking, and fieldbus control via bus adapters.
It also covers the drive‑to‑drive link, related documents, and contact information for ABB service stations. The intended readers are personnel who operate, commission, set parameters, monitor, or diagnose diode power units and modules. This manual is written in Chinese.
| Module type ACS880-304 +A018 | Half‑controlled diode‑thyristor module with three thyristors on the upper arm and three diodes on the lower arm |
|---|---|
| Module type ACS880-304 +A003 | Full‑diode module equipped with six diodes |
| Firmware version | Version B Chinese, based on 3AUA0000103295, effective 2015‑10‑01 |
The manual is intended for personnel who operate, commission, set parameters, monitor, or diagnose diode power units and modules, and who understand basic electrical principles.
Safety information is provided in the hardware manual and the ACS880 multi‑drive safety notices referenced in the manual.
