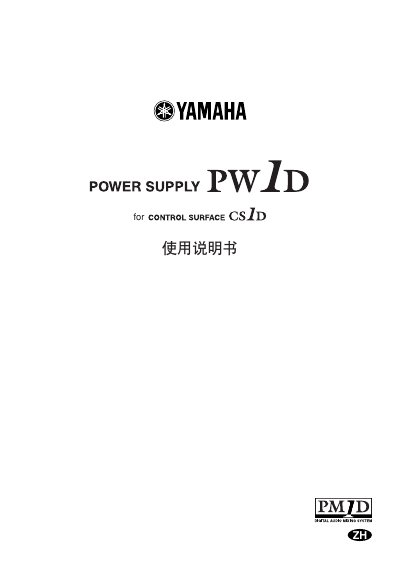

Yamaha PW1D CS1D DC Output User Manual

The Yamaha PW1D CS1D DC Output manual provides safety instructions, installation steps, wiring details, and specifications for the power supply.

Brand: Yamaha
Category: AC-DC Power
Document type: User Manual
Language: English
Pages: 6
File format: PDF
File size: 370 KB
Published: 04 October, 2026
Updated: 04 October, 2026
MD5 checksum: 6D165A5849349D2D287F49B0B8ABBE90
PDF: Yamaha PW1D CS1D DC Output User Manual PDF

About this manual

This manual covers safety precautions and handling guidelines for the Yamaha PW1D DC Output power supply used with the CS1D control surface. It warns against liquid, metal objects, improper AC source connections, and overheating to prevent fire or electric shock.

Installation instructions describe proper mounting, required clearances, connector wiring, and grounding. Technical specifications such as power consumption, operating temperature, dimensions, weight, and pin assignments are listed for reference.

What's inside

Safety Precautions
Installation Guidelines
Mounting Clearance
DC Output Pin Assignment
Electrical Specifications
RoHS Compliance

Specifications

Power consumption	400 W
Operating temperature	10-35 °C
Dimensions (W×H×D)	480 mm × 97.5 mm × 368.5 mm
Weight	9.6 kg

Frequently asked questions

What clearance should be left above the device when installing it?

Leave at least 10 cm of airflow space above the panel when mounting the unit.

What is the operating temperature range of the unit?

The device operates between 10 °C and 35 °C.

How much power does the unit consume?

The unit consumes 400 W of power.
