Start here

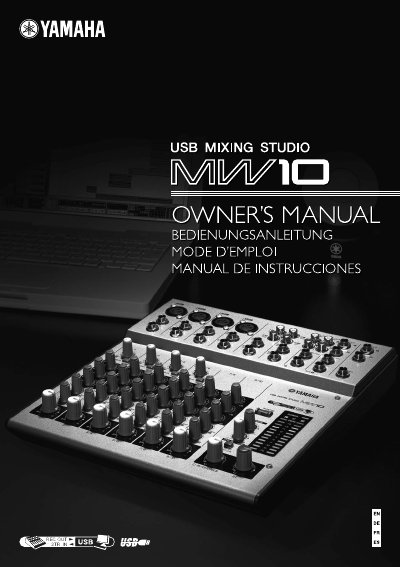

Yamaha MW10 USB Mixing Studio Owner's Manual
The Yamaha MW10 is a USB Mixing Studio designed for music production. This Owner's Manual covers essential safety precautions, including warnings about electrical shock, water exposure, and proper handling of the power cord and device. It also details the correct wiring for XLR and TRS connectors to ensure proper signal transmission.
The document includes compliance statements for the United Kingdom and the United States, outlining the responsible parties and FCC rules adherence. It specifies that the device generates radio frequencies and may cause interference if not installed according to the instructions, advising users to use high-quality shielded cables and follow specific setup procedures.
Yamaha MW10 specifications
| Mains wiring colour code | BLUE = NEUTRAL, BROWN = LIVE |
|---|---|
| Audio input | 2TR IN/USB (ST/TO C‑R) |
| USB audio interface | USB Audio CODEC (1) and (2) |
All Yamaha MW10 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How should the mains plug be wired for the MW10?
Connect the blue wire to the neutral (N) or black terminal and the brown wire to the live (L) or red terminal; do not connect either wire to the earth terminal.
How is the MW10 connected to a computer?
Use the supplied USB cable and select the USB Audio CODEC interface in the operating system’s audio settings or within Cubase LE.
