Key facts
- Brand
- SONY
- Model
- SRPC-1
- Industry
- Electronics
- Documents
- 2
- Languages
- EN
- Last added
- 2012-07-09
Start here

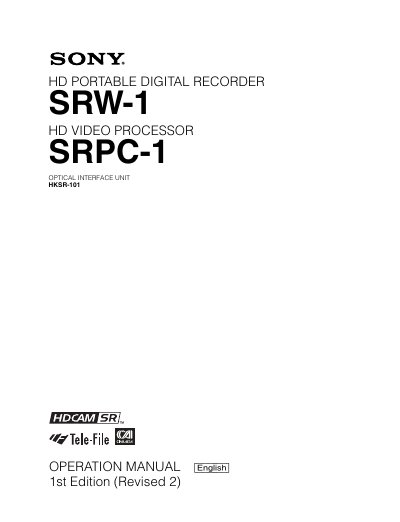

Sony SRW-1/SRPC-1/HKSR-101 Operation Manual
The document provides comprehensive instructions for the Sony SRW-1 high-definition portable digital recorder used in conjunction with the SRPC-1 video processor. It details system configuration, part names, and functions for both units as well as the optional optical interface unit.
The guide covers essential procedures including preparations such as assembly, connections for recording and playback, power supply setup, and cassette handling. It also explains menu settings for TC, Video, Audio, and System configurations, along with detailed steps for signal format selection and actual recording and playback operations.
SONY SRPC-1 specifications
| Video Format | HDCAM-SR format |
|---|---|
| Resolution (Progressive) | 1080 x 1920 |
| Resolution (Interlaced) | 1080 x 1920 |
| Audio Channels | 12-channel |
| Laser Output Power (HKSR-101) | 10 mW (max.) |
All SONY SRPC-1 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum recording speed for high-speed data transfers?
The unit supports double-speed recording, allowing twice as much data to be recorded in the same time.
Can two camera systems be recorded simultaneously?
Yes, the output of two camera systems can be recorded simultaneously on a single tape as 4:2:2 DUAL STREAM.
What recording modes are available?
You can select from 1080 x 1920 progressive at 23.98PsF, 24PsF, 25PsF, or 29.97PsF, and 1080 x 1920 interlaced at 59.94i / 50i.
From: Sony SRW-1/SRPC-1 HD Portable Digital Recorder Operation Manual
What is the maximum laser output power for the HKSR-101?
The maximum laser output power for the optional HKSR-101 Optical Interface Unit is 10 mW.
From: Sony SRW-1/SRPC-1 HD Portable Digital Recorder Operation Manual
