Key facts
- Brand
- Samsung
- Model
- SP54T7
- Category
- Television
- Industry
- Appliances
- Documents
- 2
- Languages
- ZH
- Last added
- 2012-03-20
Start here

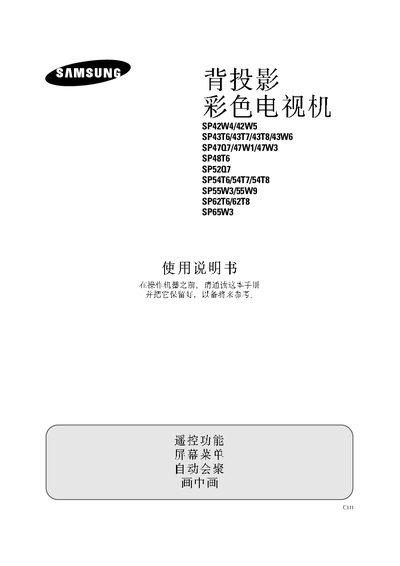

samsung SP42W4/42W5 SP43T6/43T7/43T8/43W6 SP47Q7/47W1/47W3 SP48T6 SP52Q7 SP54T6/54T7/54T8 SP55W3/55W9 SP62T6/62T8 SP65W3 back-projection color Television Manual
The manual begins with safety instructions, warning users about proper installation, electrical hazards, and handling precautions. It then describes the front control panel, including picture‑in‑picture functions, volume and mute controls, and standby indicators.
The rear interface section lists the available connectors such as VHF/UHF antenna inputs, audio/video jacks, PC audio/video ports, and DVD audio inputs, allowing users to connect external sources and speakers. Additional notes cover power requirements and basic troubleshooting. This manual is written in Chinese.
Samsung SP54T7 specifications
| Input voltage | 220 V AC |
|---|---|
| Frequency | 30 Hz or 60 Hz |
| Rear antenna input | VHF/UHF |
| Audio/Video inputs | Audio and video jacks |
| PC input | PC audio/video input |
All Samsung SP54T7 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- samsung SP42W4/42W5 SP43T6/43T7/43T8/43W6 SP47Q7/47W1/47W3 SP48T6 SP52Q7 SP54T6/54T7/54T8 SP55W3/55W9 SP62T6/62T8 SP65W3 back-projection color Television Manual 44 p
- samsung SP42W4/42W5 SP43T6/43T7/43T8/43W6 SP47Q7/47W1/47W3 SP48T6 SP52Q7 SP54T6/54T7/54T8 SP55W3/55W9 SP62T6/62T8 SP65W3 back-projection color Television Guide
Questions answered in these manuals
What voltage should the TV be connected to?
The TV requires a 220 V AC power source.
Which antenna standards are supported on the rear panel?
The rear panel provides VHF and UHF antenna inputs.
