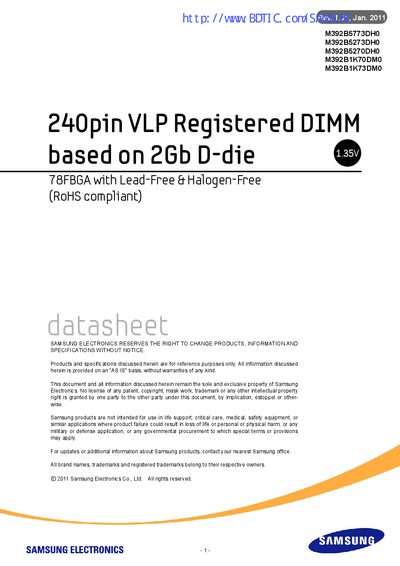

SAMSUNG 240pin VLP Registered DIMM based on 2Gb D-die 78FBGA with Lead-Free Halogen-Free (RoHS compliant)
This document provides detailed technical information for Samsung's 240‑pin VLP Registered DIMM modules. It includes ordering data, key features, pin configurations, electrical characteristics, and thermal sensor specifications.
The datasheet also contains mechanical drawings for heat spreader design, absolute maximum ratings, and functional descriptions of the DDR3L SDRAM interface, helping designers integrate the memory module into their systems.
Samsung 78FBGA specifications
| Pin count | 240 |
|---|---|
| Capacity | 2 GB |
| Supported speeds | DDR3‑800, DDR3‑1066, DDR3‑1333, DDR3‑1600 |
| Operating voltage | 1.35 V (1.28‑1.45 V) & 1.5 V (1.425‑1.575 V) |
| Thermal sensor resolution | 0.25 °C per LSB |
All Samsung 78FBGA documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- SAMSUNG 240pin VLP Registered DIMM based on 2Gb D-die 78FBGA with Lead-Free Halogen-Free (RoHS compliant) 50 p
- SAMSUNG M392B1K73DM0 M392B1K70DM0 M392B5270DH0 M392B5773DH0 M392B5273DH0 240pin VLP Registered DIMM based on 2Gb D-die 78FBGA with Lead-Free Halogen-Free (RoHS compliant) 51 p
- SAMSUNG 1Gb F-die DDR3 SDRAM 78FBGA with Lead-Free Halogen-Free (RoHS compliant) K4B1G0846F handbook 59 p
Questions answered in these manuals
How many pins does the DIMM have?
The module uses a 240‑pin VLP Registered DIMM package.
What voltage levels does the DIMM operate at?
It operates at 1.35 V (range 1.28‑1.45 V) or 1.5 V (range 1.425‑1.575 V).
What supply voltage do the M392B DIMM modules require?
They operate from a JEDEC‑standard 1.5 V plus 0.075 V supply.
Which DDR3 speed grades are supported by the M392B series?
The modules support DDR3‑800, DDR3‑1066, DDR3‑1333, DDR3‑1600 and DDR3‑1866.
What package type does the Samsung K4B1G0846F use?
It uses a 78‑ball FBGA package available in x4 and x8 configurations.
From: SAMSUNG 1Gb F-die DDR3 SDRAM 78FBGA with Lead-Free Halogen-Free (RoHS compliant) K4B1G0846F handbook
Which DDR3 speed grades are supported by the K4B1G0846F?
The device supports DDR3‑800, DDR3‑1066, DDR3‑1333, and DDR3‑1600 speed grades.
From: SAMSUNG 1Gb F-die DDR3 SDRAM 78FBGA with Lead-Free Halogen-Free (RoHS compliant) K4B1G0846F handbook
