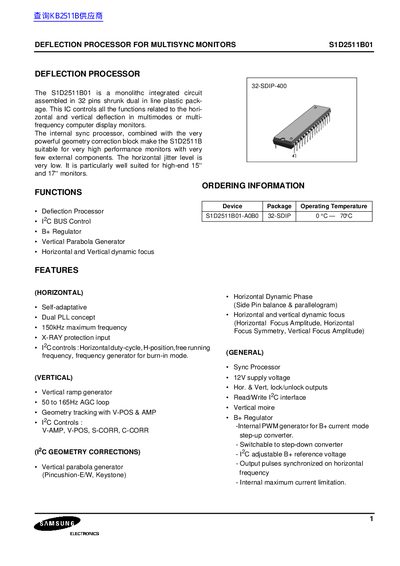

S1D2511B01 Deflection Processor Datasheet
The S1D2511B01 deflection processor controls all horizontal and vertical deflection functions in multi‑mode computer display monitors. It integrates a powerful geometry correction block, low‑jitter horizontal output, and a versatile DC/DC converter for B+ voltage generation.
Key features include a dual‑PLL concept, self‑adaptive horizontal control, vertical ramp generator with AGC, X‑ray protection input, and extensive I²C‑controlled B+ regulation. The device is supplied in a 32‑SDIP‑400 package and operates from a 12 V supply with temperature ranges from 0 °C to +70 °C.
Samsung S1D2511B01 specifications
| Package | 32‑SDIP‑400 |
|---|---|
| Horizontal frequency range | 15 to 150 kHz |
| Vertical frequency range | 35 to 200 Hz |
| Supply voltage (pin 29) | 13.5 V |
| Operating temperature | 0 °C to +70 °C |
All Samsung S1D2511B01 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum horizontal frequency of the S1D2511B01?
The processor supports up to 150 kHz horizontal frequency.
What supply voltage is required for pin 29?
Pin 29 typically requires 13.5 V.
What horizontal frequency range does the S1D2511B01 support?
It supports horizontal frequencies from 15 kHz up to 150 kHz.
From: Samsung S1D2511B01 Deflection Processor for Multisync Monitors Handbook
Which pins provide the supply voltages for the processor?
Pin 29 supplies the main VEC voltage (up to 13.5 V) and Pin 32 supplies a 5 V supply.
From: Samsung S1D2511B01 Deflection Processor for Multisync Monitors Handbook
What is the package type of the 1D2511B01?
It is supplied in a 32‑pin SDIP package.
From: samsung S1D2511B01 DEFLECTION PROCESSOR FOR MULTISYNC MONITORS Manual
What horizontal frequency range does the 1D2511B01 support?
The device supports horizontal frequencies from 15 kHz up to 150 kHz.
From: samsung S1D2511B01 DEFLECTION PROCESSOR FOR MULTISYNC MONITORS Manual
