This is a white SMD package LED product with high luminous efficiency and low power consumption. The typical luminous flux is 11 lm (blue), 35 lm (green), 50 lm (true green), the light source wavelength is 470 nm (blue), 505 nm (green), 528 nm (true green), and it is suitable for all SMT mounting technologies.

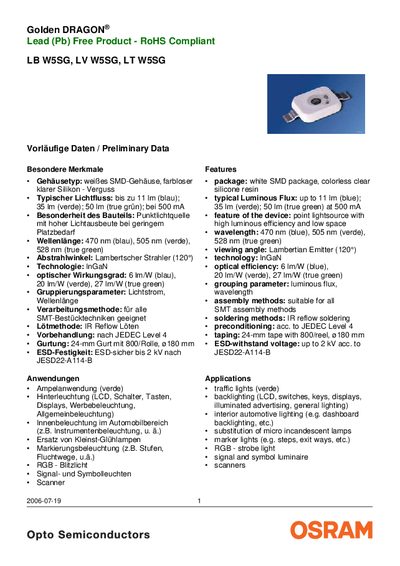

This data sheet describes the OSRAM W5SG series of high‑efficiency InGaN LEDs, available in three brightness variants (LB, LV, LT) and three color options (blue, verde, true green). It lists typical luminous flux, peak wavelength, viewing angle, optical efficiency and electrical characteristics, as well as recommended assembly and handling procedures.
The document also includes ordering codes, maximum ratings, temperature limits, and packaging notes such as the single‑group per reel policy. Revision history and safety notices are provided at the end of the sheet.
| Viewing Angle | 120° (Lambertian) |
|---|---|
| Optical Efficiency (blue) | 6 lm/W |
| Forward Voltage (typical) | 3.8 V |
| Operating Temperature Range | -40 °C to +100 °C |
The device can operate from –40 °C up to +100 °C.
The LED is suitable for all SMT assembly methods, including IR reflow soldering.
