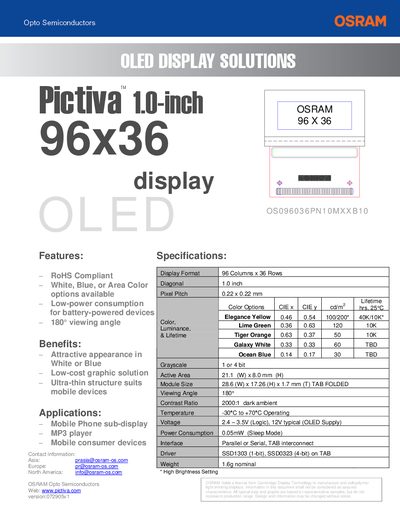

This PDF introduces the features, specifications, applications and other information of OSRAM 96 X 36 Pictiva TM 1.0-inch 96x36 display.
The Pictiva 1.0‑inch display features a 96 × 36 pixel matrix with a 0.22 × 0.22 mm pixel pitch. It is available in several color options such as White, Blue, Ocean Blue, Galaxy White, Lime Green, Tiger Orange and Elegance Yellow, and offers low‑power consumption, a 2000:1 contrast ratio and a 180° viewing angle, making it suitable for mobile phones, MP3 players and other consumer devices.
Mechanical dimensions are compact (module size 28.6 × 17.26 × 1.7 mm, active area 21.1 × 8.0 mm) with a 1.6 g weight. The display can be driven via parallel or serial interfaces, operates from 2.4‑3.5 V logic (12 V typical) and consumes only 0.05 mW in sleep mode. Ordering numbers and part codes are listed for each color variant, and contact information for global regions is provided.
| Display format | 96 Columns x 36 Rows |
|---|---|
| Pixel pitch | 0.22 x 0.22 mm |
| Active area | 21.1 mm (W) x 8.0 mm (H) |
| Module size | 28.6 mm (W) x 17.26 mm (H) x 1.7 mm (T) |
| Viewing angle | 180° |
| Contrast ratio | 2000:1 |
| Operating temperature | -30 °C to +70 °C |
| Supply voltage | 2.4‑3.5 V (logic), 12 V typical |
| Power consumption (sleep mode) | 0.05 mW |
| Weight | 1.6 g |
It can operate from –30 °C up to +70 °C.
The display provides a 180° viewing angle.
In sleep mode the display consumes 0.05 mW.
