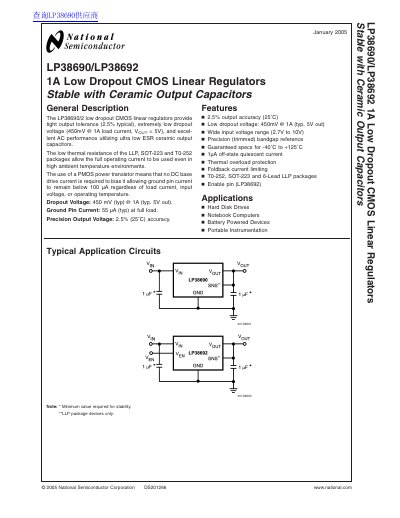

National Semiconductor LP38690/LP38692 Datasheet
Datasheet 15 pages · 810 KB · EN
The LP38690 and LP38692 are low dropout CMOS linear regulators designed to provide tight output tolerance and excellent AC performance. They utilize ultra low ESR ceramic output capacitors and feature a PMOS power transistor to minimize ground pin current. These devices are stable with ceramic capacitors and offer a wide input voltage range from 2.7V to 10V.
Read onlineNational Semiconductor LP38692 specifications
| Output Voltage Tolerance | 2.5% typical |
|---|---|
| Dropout Voltage | 450 mV typical @ 1A |
| Input Voltage Range | 2.7V to 10V |
| Operating Temperature Range | -40°C to +125°C |
| Quiescent Current | 55 pA typical |
All National Semiconductor LP38692 documents by type
Datasheet 1
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the applications for the LP38690/LP38692?
These regulators are suitable for hard disk drives, notebook computers, battery powered devices, and portable instrumentation.
What packages are available for these regulators?
The devices are available in T0-252, SOT-223, and 6-Lead LLP packages.
What is the dropout voltage of the LP38690/LP38692?
The typical dropout voltage is 450 mV at a 1 A load.
What input voltage range do these regulators support?
They operate from 2.7 V up to 10 V.
