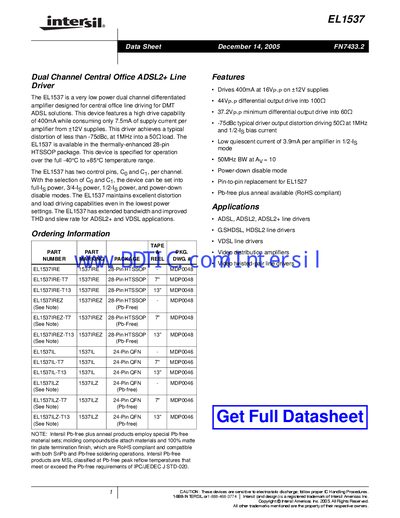

The EL1537 is a very low power dual channel differentiated amplifier designed for central office line driving for DMT ADSL solutions. This device features a high drive capability of 400mA while consuming only 7.5mA of supply current per amplifier from ±12V supplies. This driver achieves a typical distortion of less than -75dBc, at 1MHz into a 50Ω load. The EL1537 is available in the thermally-enhanced 28-pin HTSSOP package. This device is specified for operation over the full -40°C to +85°C temperature range. The EL1537 has two control pins, C0 and C1, per channel. With the selection of C0 and C1, the device can be set into full-IS power, 3/4-IS power, 1/2-IS power, and power-down disable modes. The EL1537 maintains excellent distortion and load driving capabilities even in the lowest power settings. The EL1537 has extended bandwidth and improved THD and slew rate for ADSL2+ and VDSL applications.
The EL1537 is a very low‑power dual‑channel differentiated amplifier designed for central‑office line driving in ADSL2+ and VDSL applications. It provides up to 400 mA drive current at 16 V p‑p on a +12 V supply and features a low quiescent current of 3.9 mA per amplifier.
The device operates over a temperature range of –40 °C to +85 °C, offers a 50 MHz bandwidth, and includes power‑down disable mode and two control pins per channel. Ordering information and package options are listed, and the product complies with RoHS requirements.
| Drive current | 400 mA at 16 V p‑p on +12 V supplies |
|---|---|
| Differential output drive | 44 V p‑p into 100 Ω |
| Quiescent current | 3.9 mA per amplifier |
| Operating temperature range | -40 °C to +85 °C |
| Bandwidth | 50 MHz at Ay = 10 |
| Control pins | Two control pins (Cg and C1) per channel |
| Power‑down disable mode | Supported |
The EL1537 can drive up to 400 mA at 16 V p‑p on a +12 V supply.
Each amplifier has a low quiescent current of 3.9 mA.
It operates from –40 °C to +85 °C.
Yes, the device is Pb‑free and RoHS compliant.
