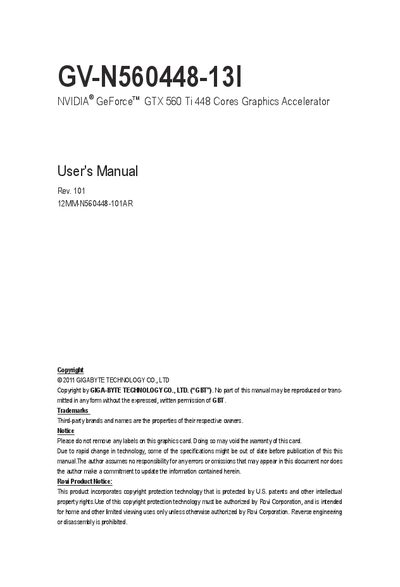

Introduces the features and characteristics of GV-N560448-13I NVIDIA ® GeForce TM GTX 560 Ti 448 Cores Graphics Accelerator, including hardware installation and software installation.
This manual introduces the GV-N560448-131 graphics card, which is powered by an NVIDIA GeForce GTX 560 Ti GPU with 1280 MB GDDR5 memory and supports DirectX 11, HDCP, and a range of display outputs (DisplayPort, DVI‑I, DVI‑D, HDMI). Minimum system requirements include a 550 W power supply, an Intel Pentium 4 or AMD Athlon XP class CPU, and at least 2 GB of system memory.
The guide details hardware installation steps, including connecting two 6‑pin PCI‑Express auxiliary power connectors, securing the card in a PCI‑Express x16 slot, and attaching display cables. It also covers software installation, driver setup, SLI configuration, safety precautions against static electricity, and troubleshooting tips.
| GPU | NVIDIA GeForce GTX 560 Ti 448‑core |
|---|---|
| Memory | 1280 MB GDDR5 |
| DirectX Support | DirectX 11 |
| Display Outputs | DisplayPort, DVI‑I, DVI‑D, HDMI |
| HDCP | Supported |
| SLI Support | Supported (requires identical cards) |
| Power Connectors | Two 6‑pin PCI‑Express auxiliary connectors |
| Recommended PSU (single card) | 550 W or higher |
| Recommended PSU (SLI) | 850 W or higher |
A 550 W power supply is recommended for a single card, and an 850 W supply is recommended when using SLI.
The card requires two 6‑pin PCI‑Express auxiliary power connectors.
The card provides DisplayPort, DVI‑I, DVI‑D, and HDMI connectors.
Yes, it supports NVIDIA SLI and requires identical cards from the same vendor.
