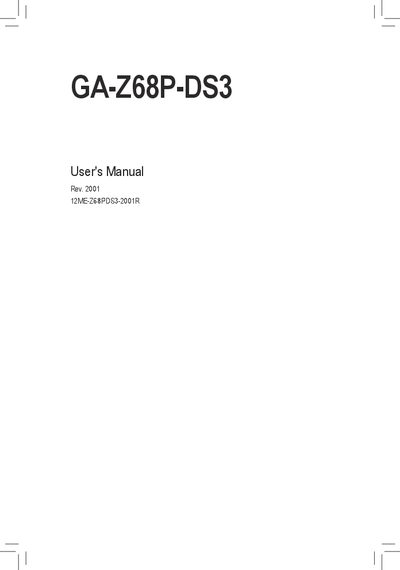

This document is the user manual for GIGABYTE GA-Z68P-DS3 motherboard, which introduces the detailed information of the motherboard, including hardware installation, firmware upgrade, driver installation, etc.
This manual covers everything needed to install and configure the GA-Z68P-DS3 motherboard, including hardware installation steps, BIOS options, driver setup, and unique features such as Xpress Recovery and Cloud OC. It also contains safety precautions, troubleshooting tips, and contact information for technical support.
The document includes a detailed table of contents, motherboard layout diagrams, block diagrams, and specifications for CPU support, memory, storage interfaces, expansion slots, and onboard graphics, helping users build and maintain a reliable PC system.
| Memory slots | 4 DDR3 DIMM sockets, up to 32 GB |
|---|---|
| Supported memory speeds | DDR3 2133/1866/1600/1333/1066 MHz |
| SATA ports | 2 × 6 Gb/s, 3 × 3 Gb/s, 1 × mSATA |
| LAN controller | Realtek GbE 10/100/1000 Mbit |
| PCI Express slots | 1 × PCIe x16 (x16), 1 × PCIe x16 (x4), 2 × PCIe x1 |
| Onboard graphics output | 1 × HDMI (max 1920×1200) |
The board has four DDR3 DIMM slots supporting up to 32 GB of system memory.
There are two SATA 6 Gb/s ports, three SATA 3 Gb/s ports, and one mSATA connector.
Wear an ESD wrist strap or touch a grounded metal object before handling components, and work on an antistatic surface.
