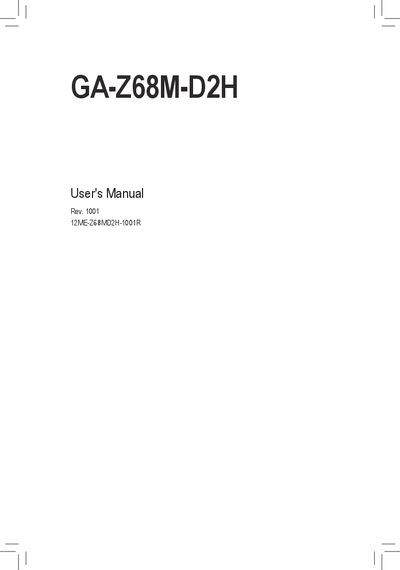

GA-Z68M-D2H User's Manual introduces the detailed information of the GA-Z68M-D2H motherboard, including the layout of the motherboard, hardware installation, BIOS settings, etc.
This manual provides detailed information for the Gigabyte GA‑Z68M‑D2H motherboard, covering hardware installation, BIOS configuration, driver setup, and troubleshooting. It includes a declaration of conformity, safety notices, and contact information for global support.
The document is organized into sections such as box contents, motherboard layout, block diagram, hardware installation steps, BIOS setup, driver installation, unique features, and an appendix with SATA and audio configuration guides.
| PCI Express x16 slots | 1 |
|---|---|
| PCI Express x4 slots | 1 |
| PCI Express x1 slots | 2 |
| Memory type | DDR3 2133/1866/1600 |
| SATA controller | Intel® 268 SATA3.0 |
| USB ports | 14 USB 2.0/1.1 |
| Audio output | S/PDIF Out, Line Out, Mic |
The box contains the GA‑Z68M‑D2H motherboard, a driver disk, the user’s manual, a quick installation guide, two SATA cables, a 1/0 shield, and optional items such as a 2‑port USB 2.0 bracket, a 2‑port SATA power cable, and a COM port cable.
The revision number is printed on the motherboard as "REV: X.X" (e.g., "REV: 1.0").
The motherboard complies with FCC Part 15, Subpart B, Class B Digital Device requirements.
