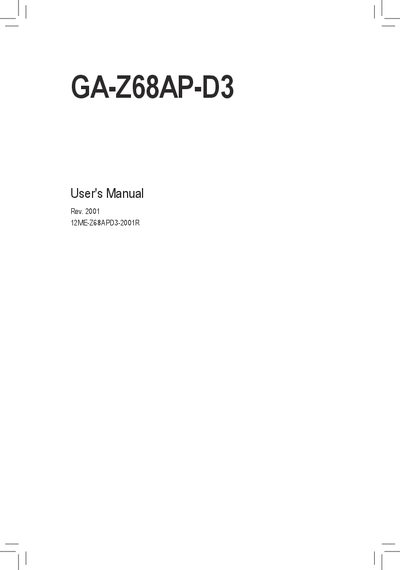

This document is the user manual for GA-Z68AP-D3 motherboard, which covers the installation, BIOS configuration, and driver installation of the motherboard.
This manual covers everything needed to install and configure the GA-Z68AP-D3 motherboard, including hardware installation steps, BIOS configuration, driver installation, and troubleshooting. It also lists the box contents and optional accessories.
Additional sections describe the motherboard layout, block diagram, unique features such as BIOS update utilities, and provide contact information for global technical support.
| CPU Socket | LGA1155 |
|---|---|
| Memory Type | DDR3 Dual Channel |
| PCI Express Slots | x16, x4 |
| Audio Codec | Realtek |
| LAN Controller | Realtek GbE LAN |
The revision number is shown as "REV: X.X", for example "REV: 1.0".
