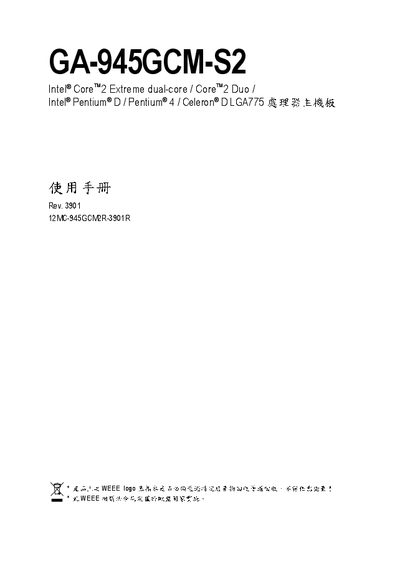

GA-945GCM-S2 is a motherboard from GIGA-BYTE. It supports Intel® Core TM 2 Extreme dual-core / Core TM 2 Duo / Intel® Pentium® D / Pentium® 4 / Celeron® D LGA775 processors.
This manual provides detailed instructions for installing the Gigabyte GA-945GCM-S2 motherboard, including a checklist of accessories, step‑by‑step hardware installation, and driver installation procedures. It also describes the BIOS setup options, power‑management features, and troubleshooting tips.
Technical specifications such as the supported CPU socket, memory types, expansion slots, storage interfaces, and connectivity options are listed, along with safety and regulatory compliance information required for market distribution. This manual is written in Chinese.
| CPU Socket | LGA775 |
|---|---|
| Memory Type | DDRII 533/400 MHz DIMM, Dual‑Channel |
| PCI Express Slots | PCI Express x16 |
| SATA Ports | SATA 3 Gb/s |
| USB Ports | 8 USB 2.0 ports |
| LAN Controller | Realtek RTL8110SC |
| BIOS Version (example) | D2 |
It supports an LGA775 socket.
The board provides eight USB 2.0 ports.
Driver installation is described in section 31 of the manual.
