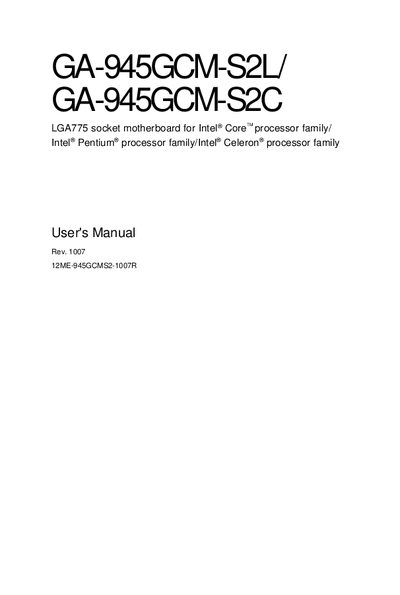

Gigabyte GA-945GCM-S2L/GA-945GCM-S2C User Manual

This is the user's manual for GA-945GCM-S2L/GA-945GCM-S2C motherboard produced by GIGA-BYTE TECHNOLOGY CO., LTD.

Brand: Gigabyte
Category: Motherboard
Document type: User Manual
Language: English
Pages: 84
File format: PDF
File size: 4.2 MB
Published: 04 June, 2012
Updated: 01 October, 2023
Model: GA-945GCM-S2
MD5 checksum: AE822542A6593CCD13F4CF821F682F32
PDF: Gigabyte GA-945GCM-S2L/GA-945GCM-S2C User Manual PDF

About this manual

The GA-945GCM-S2L and GA-945GCM-S2C are LGA775 socket motherboards designed for Intel® Core™, Pentium™ and Celeron™ processors. They feature the Intel 945GC chipset, support DDR2 memory up to 667 MHz, SATA 3 Gb/s, PCI Express x16 and x1 slots, and provide eight USB ports.

This manual provides step‑by‑step hardware installation, BIOS configuration, driver installation, unique Gigabyte features, and troubleshooting. It also lists box contents, includes a motherboard layout diagram, and gives regulatory and compliance information.

What's inside

Box Contents
Motherboard Layout
Hardware Installation
BIOS Setup
Drivers Installation
Unique Features
Appendix
Regulatory Statements

Specifications

CPU Socket	LGA775
Supported CPUs	Intel Core, Pentium, Celeron
Chipset	Intel 945GC
Memory Type	DDR2 667/533/400 MHz
SATA Interface	3 Gb/s
USB Ports	8

Frequently asked questions

Which processors are compatible with the GA-945GCM‑S2L/‑S2C motherboard?

The board supports Intel® Core™, Intel® Pentium™ and Intel® Celeron™ processor families.

Where can I find the motherboard layout diagram?

The layout diagram is provided on page 7 of the manual under "GA-945GCM‑S2L/GA-945GCM‑S2C Motherboard Layout".
