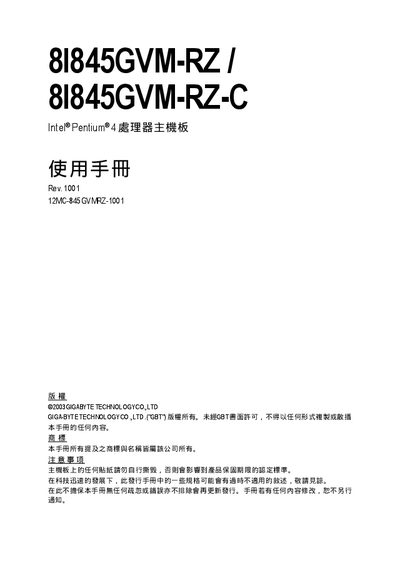

This document introduces the 8I845GVM-RZ / 8I845GVM-RZ-C User Manual, which covers the specifications and installation steps of the Intel® Pentium® 4 processor motherboard.
This manual covers the Gigabyte 8I845GVM-RZ motherboard, detailing its layout, supported Intel Pentium 4 processors, Intel 845GV GMCH and ICH4 chipsets, and memory options such as DDR333/DDR266/DDR200 DIMM modules. It also lists the various connectors, expansion slots, and peripheral interfaces including PCI, IDE, USB, and network ports.
The document includes safety cautions, a declaration of conformity, BIOS setup guidance, and contact information for Gigabyte technical support. It serves as a reference for assembling, configuring, and troubleshooting the system built around this motherboard.
| Graphics Chipset | Intel 845GV GMCH |
|---|---|
| Southbridge Chipset | Intel ICH4 |
| Memory Type | DDR333/DDR266/DDR200 DIMM |
| USB Ports | USB 2.0/1.1 (USB x2, USB x4) |
| Network Controller | Realtek RTL8100C |
It accepts DDR DIMM modules of 200 MHz, 266 MHz, or 333 MHz speed.
The motherboard provides both USB 2.0 and USB 1.1 ports, with two USB 2.0 and four USB 1.1 connectors.
