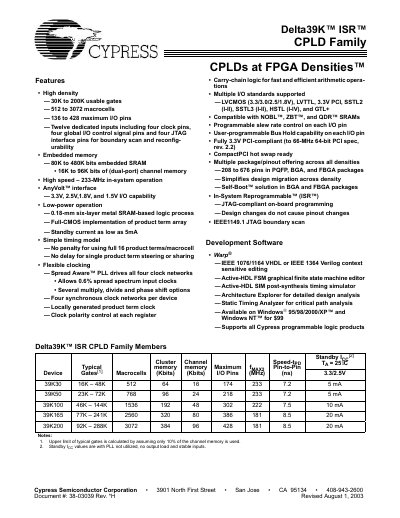

Cypress Delta39K ISR CPLD Family Manual
This manual describes the Delta39K ISR CPLD family, a high‑density, low‑power programmable logic solution from Cypress. It outlines key features such as up to 200 K usable gates, embedded SRAM, multiple voltage I/O options, and in‑system reprogrammability via JTAG.
The document details the device architecture, including Logic Block Clusters, macrocell structure, embedded channel and cluster memory, I/O bank organization, and timing specifications. It also includes tables of device variants, package options, and electrical characteristics.
Cypress Delta39K specifications
| Usable gates | 30 K to 200 K |
|---|---|
| Macrocells | 512 to 3072 |
| Maximum I/O pins | 136 to 428 |
| In‑system speed | 233 MHz |
| Standby current | as low as 5 mA |
| Embedded SRAM | 80 K to 480 K bits |
| Channel memory | 16 K to 96 K bits (dual‑port) |
| Supported I/O voltages | 1.5 V, 1.8 V, 2.5 V, 3.3 V |
