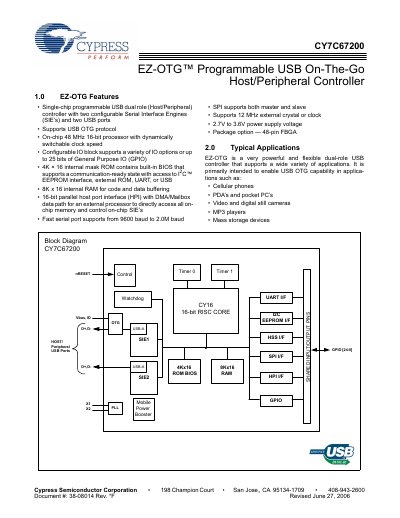

Cypress CY7C67200 User Manual
This manual describes the EZ-OTG™ CY7C67200, Cypress Semiconductor’s first USB On‑The‑Go host/peripheral controller. It covers the programmable 16‑bit RISC core, power‑management options, and the various configurable interfaces such as I2C, UART, SPI, HPI and HSS.
The document includes functional overviews, pin‑out tables, electrical specifications, power‑saving modes, boot configuration, memory map, and register definitions, providing the information needed for both standalone use and integration as a coprocessor in host systems.
Cypress CY7C67200 specifications
| Processor core speed | 48 MHz |
|---|---|
| Power consumption (operational) | 50 mA |
| Power consumption (standby) | 30 mA |
| Supply voltage | 2.7 V to 3.6 V |
| Package type | 48‑pin FBGA |
| Internal ROM | 4 K × 16 bits |
| Internal RAM | 8 K × 16 bits |
Source: Cypress CY7C67200 EZ-OTG Programmable USB On-The-Go Host/Peripheral Controller Datasheet
All Cypress CY7C67200 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the core processor speed of the CY7C67200?
The controller includes a 48 MHz 16‑bit processor.
From: Cypress CY7C67200 EZ-OTG Programmable USB On-The-Go Host/Peripheral Controller Datasheet
What power‑saving mode does the EZ‑OTG support?
It provides a Sleep mode that pauses all operations for the lowest power state.
From: Cypress CY7C67200 EZ-OTG Programmable USB On-The-Go Host/Peripheral Controller Datasheet
What supply voltage range does the CY7C67200 support?
The device operates from 2.7 V to 3.6 V.
How many USB ports are available on the EZ‑OTG controller?
It provides two downstream host ports and two upstream peripheral ports.
