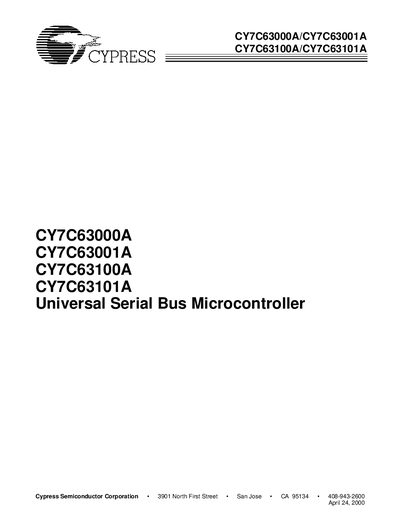

Cypress CY7C63000A/CY7C63001A/CY7C63100A/CY7C63101A USB Microcontroller User Manual
The CY7C63000A, CY7C63001A, CY7C63100A and CY7C63101A are low‑cost 8‑bit RISC USB microcontrollers designed for low‑speed peripherals such as mouse, joystick and gamepad. They comply with the USB 1.1 specification, provide one device address and two endpoints, and integrate a USB transceiver, timer, watchdog, and on‑chip RAM and EPROM.
This manual provides a functional overview, pin definitions, memory organization, register descriptions, electrical and switching characteristics, and package diagrams. It also includes ordering information and application notes for implementing the devices in USB designs.
Cypress CY7C63000A specifications
| Operating voltage | 4.0 V to 5.25 VDC |
|---|---|
| Operating temperature | 0 °C to 70 °C |
| Internal RAM | 128 bytes |
| Program memory (EPROM) | 2 KB for CY7C63000A / CY7C63100A, 4 KB for CY7C63001A / CY7C63101A |
| GPIO pins | 12 pins for CY7C6300XA, 16 pins for CY7C6310XA |
| USB speed | Low‑speed 1.5 Mbps (USB 1.1) |
| Package types | 20‑pin PDIP, 20‑pin SOIC, 24‑pin SOIC, 24‑pin QSOP |
Source: Cypress CY7C63000A/CY7C63001A/CY7C63100A/CY7C63101A USB Microcontroller Handbook
All Cypress CY7C63000A documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating voltage range of these microcontrollers?
The devices operate from 4.0 V up to 5.25 VDC.
From: Cypress CY7C63000A/CY7C63001A/CY7C63100A/CY7C63101A USB Microcontroller Handbook
How much program memory does each model provide?
CY7C63000A and CY7C63100A contain 2 KB of EPROM, while CY7C63001A and CY7C63101A contain 4 KB of EPROM.
From: Cypress CY7C63000A/CY7C63001A/CY7C63100A/CY7C63101A USB Microcontroller Handbook
