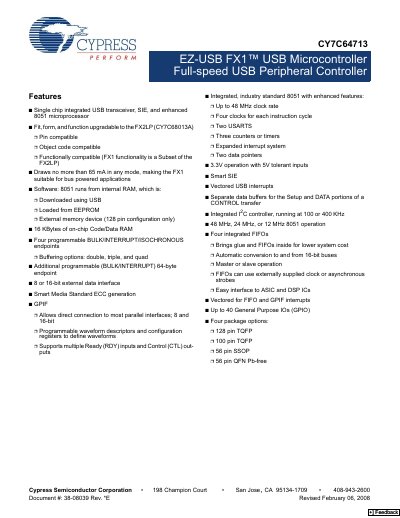

Cypress CY7C64713 EZ-USB FX1 USB Microcontroller User Manual
The Cypress CY7C64713 EZ-USB FX1 is a full‑speed USB peripheral controller that integrates a USB transceiver, Serial Interface Engine (SIE) and an enhanced 8051 microprocessor. It provides up to 16 KB of internal program/data RAM, four package options, and up to 40 GPIO pins, making it suitable for bus‑powered and low‑power applications.
The manual covers functional description, hardware interfaces (I2C, UART, GPIF), USB boot methods, interrupt architecture, reset and wake‑up behavior, memory maps, endpoint configuration, and master/slave FIFO control signals, with detailed register tables and timing diagrams.
Cypress CY7C64713 specifications
| Maximum current draw | 65 mA |
|---|---|
| Operating voltage | 3.3 V (5 V tolerant inputs) |
| On‑chip program/data RAM | 16 KB |
| General‑purpose I/Os | Up to 40 |
| USB signaling speed | Full speed 12 Mbps |
| Maximum core clock | 48 MHz |
| USARTs | Two standard 8051 USARTs |
| Register RAM | 256 bytes |
| Timers/Counters | Three timer/counters |
Source: Cypress CY7C64713/14 User Manual
All Cypress CY7C64713 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum current the CY7C64713/14 can draw?
The device draws no more than 65 mA in any mode.
How many general‑purpose I/O pins are available?
The microcontroller provides up to 40 general‑purpose I/O pins.
What is the USB signaling speed of the CY7C64713/14?
The device operates at full‑speed USB with a signaling rate of 12 Mbps.
From: Cypress CY7C64713/14 EZ-USB FX1 USB Microcontroller Datasheet
How much current does the FX1 draw in bus‑powered mode?
It draws no more than 65 mA in any mode, making it suitable for bus‑powered designs.
From: Cypress CY7C64713/14 EZ-USB FX1 USB Microcontroller Datasheet
What is the maximum current the FX1 can draw?
The FX1 draws no more than 65 mA in any mode, making it suitable for bus‑powered designs.
From: Cypress CY7C64713 EZ-USB FX1 USB Microcontroller User Manual
Which package types are available for the CY7C64713?
The device is offered in 128‑pin TQFP, 100‑pin TQFP, 56‑pin SSOP, and 56‑pin QFN packages.
From: Cypress CY7C64713 EZ-USB FX1 USB Microcontroller User Manual
