Key facts
- Brand
- Cypress
- Model
- CY7C63723
- Category
- Other Electronics
- Documents
- 4
- Languages
- EN
- Last added
- 2012-05-03
Start here

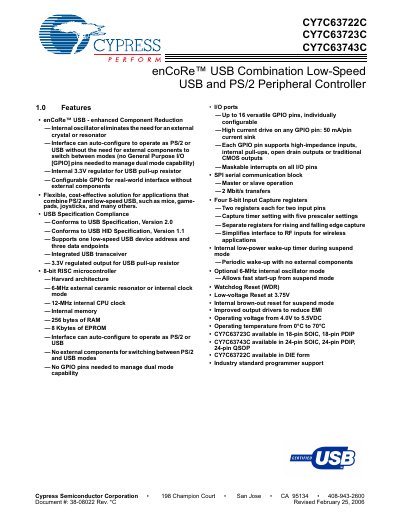

Cypress CY7C63722C CY7C63723C CY7C63743C USB Combination Low-Speed USB and PS/2 Peripheral Controller Manual
This document describes the enCoRe™ USB Combination Low‑Speed USB and PS/2 Peripheral Controller, a dual‑mode device that can operate as either a USB or PS/2 interface without external components. It highlights the internal 3.3 V regulator, built‑in oscillator, and configurable GPIO that simplify system design for mice, gamepads, joysticks, and similar peripherals.
Technical sections cover the 8‑bit RISC core, memory organization (256 B RAM, 8 KB EPROM), pin‑out diagrams, programming model, instruction set, and detailed I/O register maps. The manual also provides USB compliance information, timing diagrams, and guidance for using the optional external 6 MHz resonator.
Cypress CY7C63723 specifications
| Operating voltage | 4.0 V to 5.5 VDC |
|---|---|
| Operating temperature | 0 °C to 70 °C |
| RAM size | 256 bytes |
| EPROM size | 8 Kbytes |
| GPIO pins | Up to 16 versatile GPIO pins |
| GPIO drive capability | 50 mA sink per pin |
All Cypress CY7C63723 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What USB specifications does the controller comply with?
It conforms to USB Specification Version 2.0 and HID Specification Version 1.1, supporting one low‑speed USB device address and three data endpoints.
How many GPIO pins are available and what can they do?
The device provides up to 16 GPIO pins, each configurable as input, pull‑up, open‑drain, or CMOS output, and each can sink up to 50 mA of current.
What is the operating voltage range of the CY7C637xxC devices?
The devices operate from 4.0 V to 5.5 VDC.
How many GPIO pins are available and what is their drive capability?
Up to 16 versatile GPIO pins are provided, each capable of 50 mA drive current.
What voltage range does the enCoRe controller operate at?
It operates from 4.0 V to 5.5 VDC.
From: Cypress enCoRe USB & PS/2 Peripheral Controller CY7C63722/23/43 Datasheet
What USB features are supported by the controller?
It supports low‑speed USB with one device address and three data endpoints, and includes an integrated USB transceiver with a 3.3 V pull‑up regulator.
From: Cypress enCoRe USB & PS/2 Peripheral Controller CY7C63722/23/43 Datasheet
