Start here

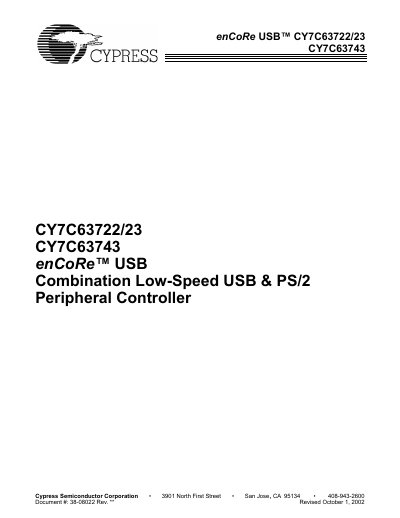

Cypress CY7C63722/23 CY7C63743 enCoRe USB Peripheral Controller Handbook
The enCoRe™ USB family combines low‑speed USB and PS/2 functionality in a single microcontroller. Cypress provides an internal crystal‑less oscillator, a 3.3 V regulator for the USB pull‑up resistor, and configurable GPIO pins, allowing designers to minimize external components.
The handbook covers the functional overview, pin assignments, programming model, instruction set, memory organization, clocking, reset behavior, and peripheral interfaces such as USB, PS/2, SPI, and timers. Detailed diagrams and tables give designers the information needed to integrate the CY7C63722, CY7C63723, and CY7C63743 devices into their products.
Cypress CY7C63743 specifications
| Operating voltage | 4.0V to 5.5VDC |
|---|---|
| Operating temperature | 0 to 70 °C |
| GPIO pins | Up to 16 versatile GPIO pins |
| GPIO current drive | 50 mA per pin |
| Internal oscillator | Crystal‑less internal oscillator |
Source: Cypress CY7C63722/23 CY7C63743 enCoRe USB Peripheral Controller Handbook
All Cypress CY7C63743 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- Cypress CY7C63722/23 CY7C63743 enCoRe USB Peripheral Controller Handbook 58 p
- Cypress CY7C63722C CY7C63723C CY7C63743C USB Combination Low-Speed USB and PS/2 Peripheral Controller Manual 49 p
- CYPRESS CY7C63722C CY7C63723C CY7C63743C Manual 49 p
- Cypress CY7C63722C CY7C63723C CY7C63743C USB/PS2 Controller Guide 49 p
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating voltage range of the CY7C63722/23/43?
The device operates from 4.0 V to 5.5 VDC.
From: Cypress CY7C63722/23 CY7C63743 enCoRe USB Peripheral Controller Handbook
How many GPIO pins does the controller provide?
It provides up to 16 versatile GPIO pins.
From: Cypress CY7C63722/23 CY7C63743 enCoRe USB Peripheral Controller Handbook
What USB specifications does the controller comply with?
It conforms to USB Specification Version 2.0 and HID Specification Version 1.1, supporting one low‑speed USB device address and three data endpoints.
How many GPIO pins are available and what can they do?
The device provides up to 16 GPIO pins, each configurable as input, pull‑up, open‑drain, or CMOS output, and each can sink up to 50 mA of current.
What is the operating voltage range of the CY7C637xxC devices?
The devices operate from 4.0 V to 5.5 VDC.
How many GPIO pins are available and what is their drive capability?
Up to 16 versatile GPIO pins are provided, each capable of 50 mA drive current.
