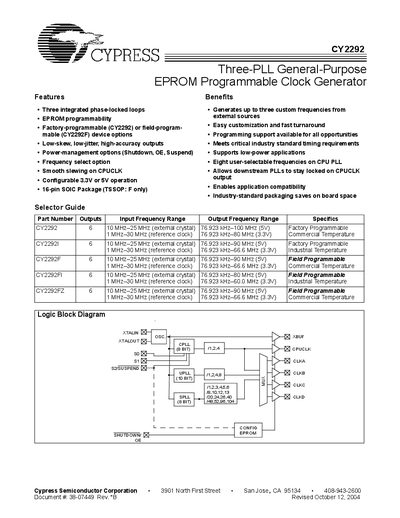

Cypress CY2292 Three-PLL EPROM Programmable Clock Generator User Manual
The CY2292 is a three‑PLL, EPROM‑programmable clock generator that can be configured for 3.3 V or 5 V operation. It offers up to three custom output frequencies, eight user‑selectable CPU PLL frequencies, and low‑skew, low‑jitter outputs suitable for PC motherboards and other synchronous systems.
The document provides pin configurations, power‑saving features such as SHUTDOWN/OE and S2/SUSPEND, software tools (CyClocks™ and the Cypress FTG Programmer) for programming, and extensive electrical and switching characteristics, including maximum ratings, output jitter, and package diagrams.
Cypress CY2292 specifications
| Integrated Phase-Locked Loops | Three integrated phase-locked loops |
|---|---|
| Supply Voltage (5V operation) | 4.5 V to 5.5 V |
| Supply Voltage (3.3V operation) | 3.0 V to 3.6 V |
| Operating Temperature (Commercial) | 0 °C to +70 °C |
| Max. Load Capacitance (5V) | 25 pF |
| Max. Load Capacitance (3.3V) | 15 pF |
Source: Cypress Semiconductor CY2292 Programmable Clock Generator Datasheet
All Cypress CY2292 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the output frequency ranges for the CY2292?
The output frequency range is 76.923 kHz to 100 MHz at 5V and 76.923 kHz to 80 MHz at 3.3V.
From: Cypress Semiconductor CY2292 Programmable Clock Generator Datasheet
Is the CY2292 programmable in the field?
No, the standard CY2292 is factory-programmable; only the CY2292F variant supports field programming.
From: Cypress Semiconductor CY2292 Programmable Clock Generator Datasheet
What does the SHUTDOWN/OE pin do?
When pulled low, SHUTDOWN/OE three‑states all outputs and shuts off the PLLs, counters, reference oscillator and other active circuitry.
From: Cypress CY2292 Three-PLL EPROM Programmable Clock Generator User Manual
How many user‑selectable frequencies are available on the CPU PLL?
The CPU PLL provides eight user‑selectable frequencies.
From: Cypress CY2292 Three-PLL EPROM Programmable Clock Generator User Manual
