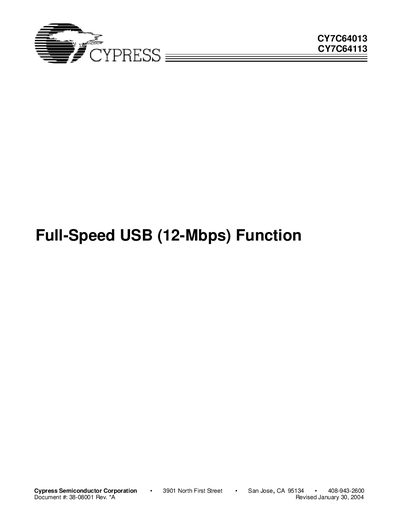

Cypress CY7C64013, CY7C64113 Full-Speed USB (12 Mbps) Function Manual
This manual describes the Cypress CY7C64013 and CY7C64113 8‑bit USB microcontrollers. It covers the full‑speed USB (12‑Mbps) function, Harvard architecture, clocking options, memory resources, GPIO and DAC ports, timers, watchdog, and USB interface details. The document includes functional overviews, pin assignments, register summaries, and programming model information for developers.
Key sections provide electrical characteristics, absolute maximum ratings, package diagrams, and ordering information. The guide also explains the hardware‑assisted parallel interface (HAPI), I²C compatibility, and interrupt handling for USB endpoints, GPIO, and DAC ports.
Cypress CY7C64013 specifications
| USB Speed | Full‑speed (12 Mbps) |
|---|---|
| CPU Architecture | 8‑bit Harvard architecture |
| External Clock | 6 MHz crystal |
| Internal CPU Clock | 12 MHz |
| Internal Clock | 48 MHz |
| RAM | 256 bytes |
| PROM | 8 KB |
| GPIO Port 3 Current | 12 mA per pin (typical) |
| DAC Sink Current Range | 3.2 mA to 16 mA (typical) |
| Timer | 12‑bit free‑running timer, 1 µs tick |
| Watchdog Timer | Enabled (WDT) |
| Operating Voltage | 4.0 V to 5.5 V DC |
| Operating Temperature | 0 °C to 70 °C |
| Package (CY7C64013) | 28‑pin SOIC or 28‑pin PDIP |
| Package (CY7C64113) | 48‑pin SSOP |
Source: Cypress CY7C64013, CY7C64113 Full-Speed USB (12 Mbps) Function Manual
All Cypress CY7C64013 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What USB speed do the CY7C64013 and CY7C64113 support?
They support full‑speed USB at 12 Mbps.
From: Cypress CY7C64013, CY7C64113 Full-Speed USB (12 Mbps) Function Manual
How many GPIO pins does the CY7C64113 have?
The CY7C64113 provides 32 GPIO pins.
From: Cypress CY7C64013, CY7C64113 Full-Speed USB (12 Mbps) Function Manual
What is the operating voltage range of the CY7C64013 and CY7C64113?
The devices operate from 4.0 V to 5.5 V DC.
How many GPIO pins does the CY7C64013 provide?
The CY7C64013 provides 19 GPIO pins.
