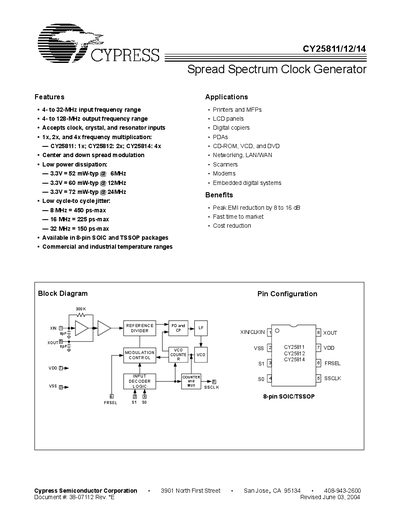

Cypress CY25811/12/14 Spread Spectrum Clock Generator Datasheet
The CY25811, CY25812 and CY25814 are spread‑spectrum clock generator (SSCG) ICs that reduce EMI by modulating the clock frequency. They accept clock, crystal or resonator inputs and provide 1×, 2× or 4× multiplication with center‑spread or down‑spread modulation.
Available in 8‑pin SOIC and 8‑pin TSSOP packages, the devices operate over commercial (0 °C‑70 °C) and industrial (‑40 °C‑85 °C) temperature ranges and feature low power dissipation (≈52 mW at 6 MHz).
Cypress CY12 specifications
| Output Frequency Range | 4 MHz to 128 MHz (depending on multiplication) |
|---|---|
| Supply Voltage | 3.3 V |
| Cycle‑to‑cycle Jitter (8 MHz) | 450 ps max |
| Package Types | 8‑pin SOIC and 8‑pin TSSOP |
| Commercial Temperature Range | 0 °C to 70 °C |
| Industrial Temperature Range | ‑40 °C to 85 °C |
Source: Cypress CY25811/12/14 Spread Spectrum Clock Generator Datasheet
All Cypress CY12 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Instruction set, parameters and examples for configuring or programming the device.
Questions answered in these manuals
Which packages are offered for the CY25811/12/14 series?
They are offered in 8‑pin SOIC and 8‑pin TSSOP packages.
From: Cypress CY25811/12/14 Spread Spectrum Clock Generator Datasheet
How much jitter can be expected at 8 MHz input?
The maximum cycle‑to‑cycle jitter at 8 MHz is 450 ps.
From: Cypress CY25811/12/14 Spread Spectrum Clock Generator Datasheet
What is the operating voltage range for these controllers?
The devices operate from 4.0 V to 5.5 V DC.
From: Cypress CY7C63411/12/13 CY7C63511/12/13 Low-Speed High I/O USB Controller Datasheet
What is the USB data rate supported?
They support low‑speed USB at 1.5 Mbps.
From: Cypress CY7C63411/12/13 CY7C63511/12/13 Low-Speed High I/O USB Controller Datasheet
What is the operating voltage range for the CY7C63411/12/13 series?
The devices operate from 4.0 V to 5.5 V DC.
How many USB endpoints are supported by these controllers?
The controller supports one device address and three data endpoints.
