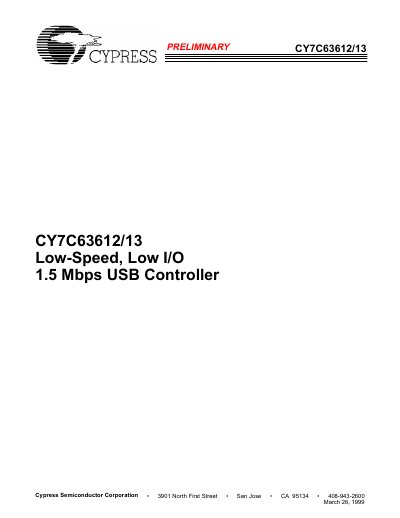

Cypress CY7C63612/13 USB Controller User Manual
The Cypress CY7C63612/13 is a low‑cost 8‑bit RISC microcontroller with an integrated USB serial interface engine. It supports USB 1.1 and HID specifications, offers 12 general‑purpose I/O pins, a 12‑bit free‑running timer, watchdog timer, and can also operate in PS/2 mode. The device is supplied in a 24‑pin SOIC package with 256 bytes of RAM and either 6 KB or 8 KB of EPROM depending on the part number.
The manual provides a functional overview, detailed pin assignments, programming model, instruction set summary, memory organization, clocking and reset information, as well as electrical characteristics such as operating voltage, temperature range, and I/O current capabilities.
Cypress CY13 specifications
| Operating Voltage | 4.0 V to 5.5 V |
|---|---|
| Operating Temperature | 0 °C to 70 °C |
| RAM | 256 bytes |
| EPROM Size | 6 KB (CY7C63612) or 8 KB (CY7C63613) |
| USB Endpoints | 1 device address, 3 data endpoints |
| External Clock | 6 MHz ceramic resonator (internal 12 MHz CPU clock) |
All Cypress CY13 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Instruction set, parameters and examples for configuring or programming the device.
Questions answered in these manuals
What is the operating voltage range for the CY7C63612/13?
The device operates from 4.0 V up to 5.5 V.
How many USB endpoints does the controller provide?
It supports one device address and three data endpoints.
What is the operating voltage range for these controllers?
The devices operate from 4.0 V to 5.5 V DC.
From: Cypress CY7C63411/12/13 CY7C63511/12/13 Low-Speed High I/O USB Controller Datasheet
What is the USB data rate supported?
They support low‑speed USB at 1.5 Mbps.
From: Cypress CY7C63411/12/13 CY7C63511/12/13 Low-Speed High I/O USB Controller Datasheet
What is the operating voltage range for the CY7C63411/12/13 series?
The devices operate from 4.0 V to 5.5 V DC.
How many USB endpoints are supported by these controllers?
The controller supports one device address and three data endpoints.
