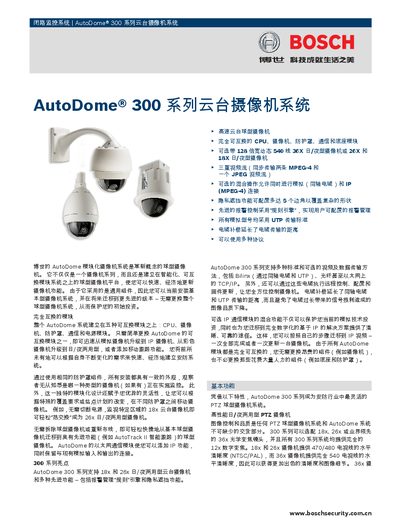

Bosch AutoDome 300 Series PTZ Camera User Manual
This manual describes the features and functions of the Bosch AutoDome 300 series PTZ cameras, including interchangeable modules, day/night operation, and advanced video streaming options. It also covers system integration, IP communication, and optional accessories.
Installation guidelines, wiring diagrams, and configuration procedures are provided, along with detailed specifications for optical performance, power requirements, and environmental ratings. The document includes troubleshooting tips and FAQ for common setup questions. This manual is written in Chinese.
Bosch AutoDome 300 specifications
| Horizontal resolution | 540 lines |
|---|---|
| Optical zoom | 36x |
| Digital zoom | 12x |
| Preset positions | 99 |
| Ingress protection | IP66 |
| Power supply | 21‑30 VAC, 50/60 Hz |
All Bosch AutoDome 300 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What is the maximum optical zoom of the AutoDome 300?
The camera provides up to 36× optical zoom.
How many preset positions does the AutoDome 300 support?
It supports up to 99 programmable preset positions.
How many preset positions does the AutoDome 300 system support?
The system supports up to 99 preset positions.
From: Bosch AutoDome 300 Series PTZ Camera System Installation Guide
What video streams are available from the AutoDome 300 when the IP module is installed?
It provides two independent MPEG‑4 streams and one JPEG stream.
From: Bosch AutoDome 300 Series PTZ Camera System Installation Guide
