Start here

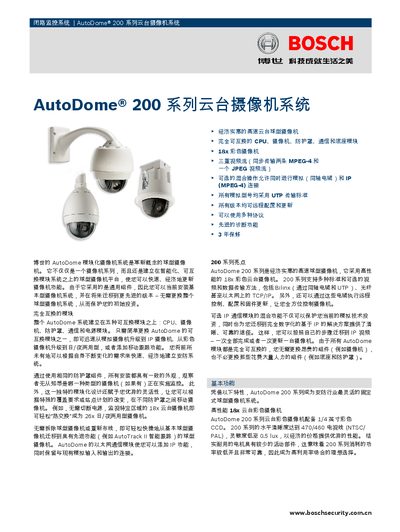

Bosch AutoDome 200 Series PTZ Camera Manual
The AutoDome 200 series is a high‑performance 18× optical‑zoom PTZ camera platform built on interchangeable modules (CPU, camera, lens, communications, power). The modular design lets users upgrade to newer functions without replacing the entire camera.
The manual covers basic features, technical specifications, mounting options, power and communication interfaces, environmental ratings, video formats and PTZ performance, plus installation and maintenance procedures. This manual is written in Chinese.
Bosch AutoDome 200 specifications
| Optical Zoom | 18× |
|---|---|
| Image Sensor | 1/4‑inch Exview HAD CCD |
| Resolution | 752×582 (PAL) / 768×494 (NTSC) |
| Minimum Illumination | 0.5 lux |
| Horizontal Resolution | 470 TV lines (NTSC) / 460 TV lines (PAL) |
| Operating Temperature (Indoor) | -10 °C to 50 °C |
| IP Rating | IP66 |
| PTZ Speed | 0.1°/s to 120°/s |
All Bosch AutoDome 200 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the optical zoom of the AutoDome 200 series camera?
The camera provides an 18× optical zoom.
What is the minimum illumination required for the camera?
The camera can operate down to 0.5 lux.
How many preset positions does the AutoDome 200 series support?
The system supports up to 64 preset positions.
What is the required power supply for the camera?
The camera requires a 21‑30 VAC, 50/60 Hz power source.
How many preset positions does the AutoDome 200 support?
The system supports up to 64 preset positions.
From: Bosch AutoDome 200 Series PTZ Camera System User Manual
