Start here

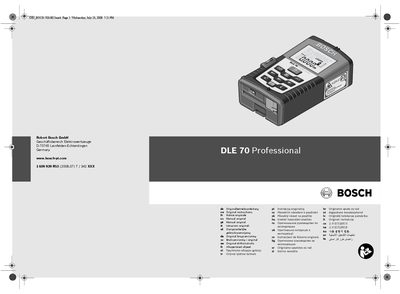

BOSCH D-70745 handbook
This manual covers the safe use of the Bosch DLE 70 Professional laser distance meter, including important safety warnings such as never pointing the laser at people or animals and keeping the warning label visible. It also explains the intended applications for measuring distances, lengths, heights, areas and volumes in indoor and outdoor construction work.
The technical data section lists the measurement range, accuracy, operating temperature, battery life, weight and dimensions, as well as laser class and IP protection. Users can find detailed operating instructions, battery replacement information, and maintenance recommendations to ensure reliable performance. This manual is written in German.
Bosch DLE 70 specifications
| Measuring range | 0.05–70 m |
|---|---|
| Measuring accuracy | ±1.5 mm (typical) |
| Operating temperature | –10 °C to +50 °C |
| Storage temperature | –20 °C to +70 °C |
| Laser class | Class 2 |
| Laser wavelength | 635 nm (<1 mW) |
| Dimensions | 59 × 100 × 32 mm |
| IP protection | IP 54 |
| Battery type | Rechargeable batteries |
Source: Bosch DLE 70 Professional Laser Rangefinder User Manual
All Bosch DLE 70 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I turn the DLE 70 Professional on and off?
Press the On/Off button (button 14) briefly to turn the device on; hold the same button for a few seconds to switch it off.
From: Bosch DLE 70 Professional Laser Rangefinder User Manual
What is the measuring range and accuracy of the DLE 70 Professional?
The device measures distances from 0.05 m up to 70 m with a typical accuracy of ±1.5 mm.
From: Bosch DLE 70 Professional Laser Rangefinder User Manual
What is the measurement range of the DLE 70?
It can measure distances from 0.05 m up to 70 m.
From: BOSCH D-70745 handbook
What laser class and wavelength does the device use?
The device uses a Class 2 laser with a wavelength of 635 nm and output power below 1 mW.
From: BOSCH D-70745 handbook
