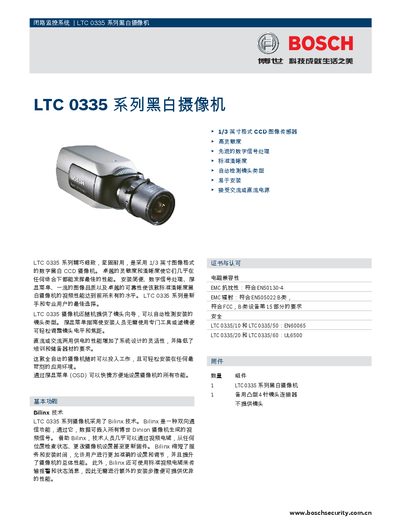

Bosch LTC 0335 Camera User Manual
The LTC 0335 series is a black‑and‑white imaging camera featuring a 1/3‑inch CCD sensor, high sensitivity, and digital signal processing. It supports both AC and DC power sources and includes Bilinx two‑way communication for video signal handling and firmware updates.
This manual covers basic functions, technical specifications, safety compliance, accessories, hardware details, and installation procedures. It also lists power supply options, environmental limits, dimensions, and connector types for the various model variants (LTC0335/10, /20, /50, /60). This manual is written in Chinese.
Bosch LTC 0335 specifications
| Active pixels (HxV) | 512×582, 512×492, 752×582, 768×494 |
|---|---|
| Resolution | 380 TVL (standard), 570 TVL (high) |
| Minimum illumination | <0.12 lux (standard), <0.09 lux (high) |
| Signal‑to‑noise ratio | > 50 dB |
| Video output | 1 Vpp, 750 |
| Power supply | 12‑28 VAC or 11‑36 VDC (LTC 08x5/10 & /20); 85‑265 VAC (LTC 03x5/50 & /60) |
| Dimensions (HxWxL) | 58 × 66 × 122 mm (2.28 × 2.6 × 4.8 in) without lens |
| Weight | 450 g (0.99 lb) without lens |
| Operating temperature | -20 °C to +50 °C (-4 °F to +122 °F) |
All Bosch LTC 0335 documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What are the power‑supply requirements for the LTC 0335/0355 cameras?
The LTC 0335 models accept 12‑28 VAC or 11‑36 VDC, while the LTC 0355 models accept 85‑265 VAC.
What power sources can the LTC 0335 camera use?
It can be powered by 12 VDC (10.8‑39 VDC) or 24 VAC (12‑28 VAC) and supports both AC and DC inputs.
What are the operating temperature limits of the camera?
The camera operates from –20 °C to 50 °C.
What power sources does the LTC 0335 camcorder support?
It can be powered by 12 VDC (10.8‑39 VDC) or 24 VAC (12‑28 VAC), with options for 50 Hz or 60 Hz operation.
From: Bosch LTC 0335 Series Black and White Camcorder Manual
Which safety certifications apply to the LTC 0335 series?
Models /10 and /50 meet EN60065, while models /20 and /60 meet UL6500.
From: Bosch LTC 0335 Series Black and White Camcorder Manual
