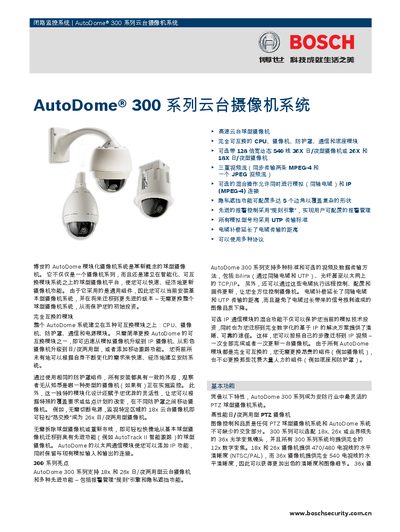

AutoDome 300 series PTZ camera system is a modular camera system from Bosch that allows you to quickly and economically update camera features. This document introduces the features and characteristics of the products in the series
The AutoDome 300 series is a modular PTZ camera system with interchangeable CPU, imaging, protection, communication and base modules. It supports 18x, 26x and 36x optical zoom, three‑stream video (MPEG‑4, JPEG, CVBS) and IP‑based networking, allowing flexible upgrades and rapid deployment of new features.
The manual covers mechanical installation options (wall, ceiling, pole, pipe), power requirements (21‑30 VAC, 50/60 Hz), environmental ratings (IP66, operating temperature –40 °C to 60 °C), preset programming (up to 99 positions), and detailed wiring for input/output, alarm handling and privacy masking. This manual is written in Chinese.
| Horizontal resolution | 540 lines |
|---|---|
| Optical zoom | 36x |
| Digital zoom | 12x |
| Preset positions | 99 |
| Ingress protection | IP66 |
| Power supply | 21‑30 VAC, 50/60 Hz |
The camera provides up to 36× optical zoom.
It supports up to 99 programmable preset positions.
The camera can output MPEG‑4 and JPEG streams simultaneously, as well as CVBS.
