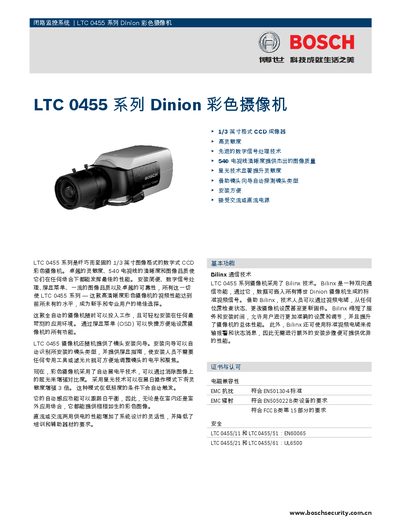

Bosch LTC 0455 Series Color Camcorder User Manual
The LTC 0455 series Dinion color camcorder is a compact, rugged 1/3‑inch CCD camera offering high sensitivity, 540 TV‑line resolution, and features such as automatic black‑level correction, star‑light mode, and Bilinx two‑way communication. It supports both DC and AC power, making installation flexible for demanding environments.
This manual covers basic functions, detailed technical specifications, electrical and mechanical data, environmental limits, ordering information, hardware accessories, and certification details. It also explains the Bilinx communication technology used for remote status monitoring, setting changes, and firmware updates. This manual is written in Chinese.
Bosch LTC 0455 series specifications
| Image sensor size | 1/3 inch CCD |
|---|---|
| Resolution (PAL) | 752 x 582 |
| Resolution (NTSC) | 768 x 494 |
| Power consumption | 4 W |
| Operating temperature | -20 °C to 50 °C |
| Weight | 0.45 kg |
| Sensitivity (color mode, PAL) | 0.30 lux |
| Sensitivity (color mode, NTSC) | 0.65 lux |
All Bosch LTC 0455 series documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What power supply options are available for the LTC0455 camcorder?
The camcorder can be powered by 12 VDC / 24 VAC for PAL models, 12 VDC / 24 VAC for NTSC models, and also 230 VAC or 120 VAC variants for other models.
What is the image sensor size of the LTC0455 series?
It uses a 1/3‑inch CCD image sensor.
What power options does the LTC 0455 series camera support?
The camera can be powered by either DC or AC sources; specific models accept 12 V DC/24 VAC, 24 V AC, 230 VAC, or 120 VAC depending on the variant.
How does the camera achieve automatic black‑level correction?
It uses automatic black‑level technology that removes glare from the image to enhance contrast.
