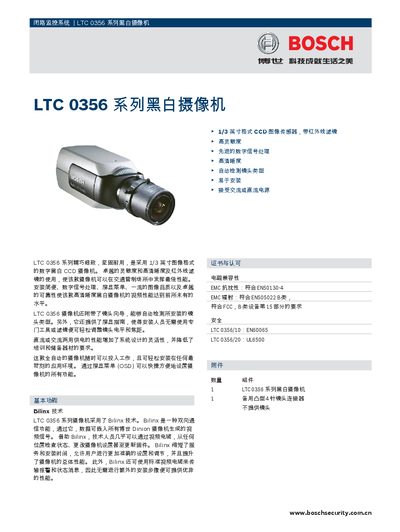

Bosch LTC0356 Series Black‑White Camcorder Manual
This manual describes the LTC0356 series black‑white camcorder, a compact 1/3‑inch CCD camera designed for traffic control and security applications. It outlines basic functions, Bilinx communication features, and the ability to operate from both AC and DC power sources.
Technical specifications, safety certifications, EMC compliance, mechanical dimensions, and accessory information are listed, along with detailed control settings and installation guidelines for the LTC0356/10 and LTC0356/20 models. This manual is written in Japanese.
Bosch LTC 0356 specifications
| Power consumption | 4 W (excluding lens) |
|---|---|
| Resolution (LTC0356/10) | 752 × 582 |
| Resolution (LTC0356/20) | 582 × 494 |
| Image sensor | 1/3‑inch CCD |
| Operating temperature | -20 °C to 50 °C |
| Storage temperature | -25 °C to 70 °C |
| Power supply | 12 VDC / 24 VAC, 50‑60 Hz |
| Video output | 1.0 Vpp into 75 Ω |
All Bosch LTC 0356 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What power supply does the LTC0356 camcorder require?
It can be powered from 12 VDC or 24 VAC, compatible with 50 Hz or 60 Hz mains.
What safety certifications apply to the LTC0356 series?
The LTC0356/10 model complies with EN60065, and the LTC0356/20 model complies with UL6500.
What power sources does the LTC 0356 support?
The camcorder can be powered by either AC or DC sources.
What type of image sensor is used in the LTC 0356 camcorder?
It uses a 1/3‑inch CCD sensor.
