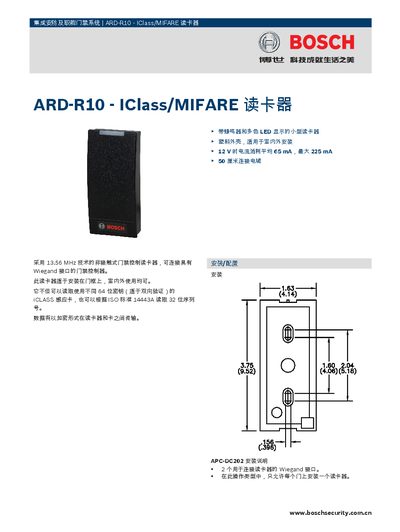

Bosch ARD-R10 IClass/MIFARE Reader Manual
The ARD‑R10 is a 13.56 MHz non‑contact access‑control reader that can be mounted on door frames for indoor or outdoor use. It reads iCLASS cards with 64‑bit keys and ISO 14443A MIFARE cards with 32‑bit serial numbers, transmitting data in encrypted form.
The manual covers installation steps, wiring via Wiegand interfaces, power requirements, environmental ratings, and detailed technical specifications. It also lists accessories, part numbers, and contact information for Bosch security support in China and Hong Kong. This manual is written in Chinese.
Bosch ARD-R10 specifications
| Operating temperature | -35°C to 65°C |
|---|---|
| Relative humidity | 5% to 95% (non‑condensing) |
| IP rating | IP65 |
| Power supply | 10 V to 16 V DC |
| Operating frequency | 13.56 MHz |
| Read distance | 5 cm to 7.6 cm |
| Interface | Wiegand |
| LED indicator | Multi‑color LED |
| Dimensions (L×W×H) | 102.6 mm × 48.3 mm × 20.3 mm |
| Weight | 90.7 g |
| Current consumption (12 V) | Average 65 mA, max 225 mA |
All Bosch ARD-R10 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What types of cards does the ARD‑R10 reader support?
It reads iCLASS cards using 64‑bit keys and ISO 14443A MIFARE cards with 32‑bit serial numbers.
What is the required power supply voltage range?
The reader operates from 10 V to 16 V DC.
How far can the reader detect iCLASS or MIFARE cards?
The reading distance ranges from 5 cm to 7.6 cm.
What environmental protection rating does the ARD‑R10 have?
The device is rated IP65, providing protection against dust and water.
