Start here

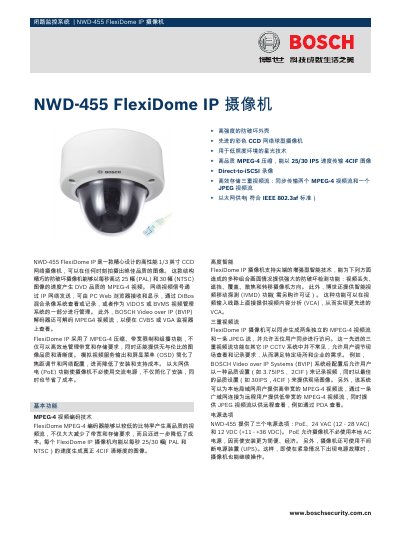

Bosch NWD-455 FlexiDome IP Camera User Manual
This manual describes the features and operation of the Bosch NWD-455 FlexiDome IP camera, a high‑performance 1/3‑inch CCD network camera with MPEG‑4 video encoding, three‑stream video output, PoE power, and intelligent anti‑tamper detection. It includes details on network setup via the on‑screen menu, recording options such as iSCSI and NVR integration, and the various accessories and mounting options.
Technical specifications, power options, environmental requirements, and software control interfaces are listed, along with certification information and ordering details for different lens configurations. The document also provides guidance for firmware updates and network protocol support. This manual is written in Chinese.
Bosch NWD-455 specifications
| Sensor type | 1/3 inch interline transfer CCD |
|---|---|
| Resolution (PAL) | 704 x 576 (4CIF) at 25/30 IPS |
| Video streams | Two MPEG‑4 streams and one JPEG stream |
| Power options | PoE, 24 VAC (12‑28 VAC), 12 VDC (+11‑+36 VDC) |
| Operating temperature | -10 °C to +40 °C |
| IP rating | IP54, NEMA‑3R |
All Bosch NWD-455 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What power options does the NWD-455 camera support?
It can be powered by PoE, 24 VAC (12‑28 VAC) or 12 VDC (+11 to +36 VDC).
How many video streams can the camera generate simultaneously?
The camera can generate two independent MPEG‑4 streams and one JPEG stream at the same time.
What power options are available for the NWD-455?
The camera can be powered by PoE (IEEE 802.3af), 24 VAC (12‑28 VAC) or 12 VDC (+11 to +36 VDC).
How many video streams can the FlexiDome IP camera generate?
It can simultaneously generate two independent MPEG‑4 streams and one JPEG stream.
What power sources can the NWD-455 FlexiDome IP camera use?
It can be powered by PoE (IEEE 802.3af), 24 VAC (12‑28 VAC) or 12‑36 VDC.
What video streams does the camera support?
The camera can generate simultaneous MPEG‑4 high‑quality, MPEG‑4 low‑bitrate, and JPEG streams.
