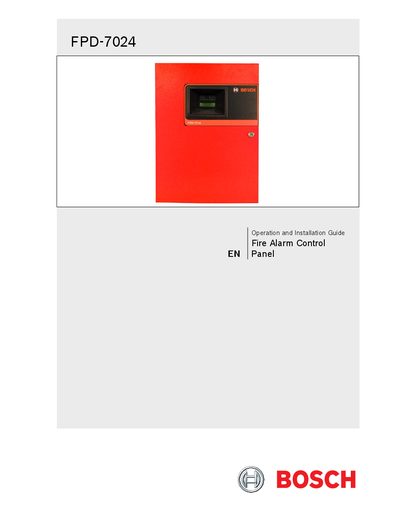

Bosch FPD-7024 Fire Alarm Control Panel Operation and Installation Guide
This guide covers the Bosch FPD-7024 fire alarm control panel, a fully integrated hard‑wire system that supports four input points (expandable to 255 with the D7039 Multiplex Expansion Module and the FPC‑7034 Four‑Point Expander) and up to 16 user codes (expandable to 100). The panel includes a built‑in dual‑line communicator, menu‑driven keypad programming, a 99‑event history buffer, and is UL Listed, CSFM and MEA approved.
The manual details installation requirements, wiring diagrams, option‑bus connections, and programming procedures. It also includes FCC and Industry Canada compliance notices, troubleshooting tips, and specifications for power, detector circuits, and optional accessories such as remote LCD keypads and LED annunciators.
Bosch FPD-7024 specifications
| Maximum input points | 4 (expandable to 255 with D7039 and FPC‑7034) |
|---|---|
| Maximum user codes | 16 (expandable to 100 with D7039) |
| Communicator | Built‑in dual‑line communicator |
| Event history buffer | 99 events (expandable to 499 with D7039) |
| UL certifications | UL Listed, CSFM, MEA Approved |
| Power supply voltage | 20.4 to 28.2 VDC |
| Two‑wire circuits | 4 circuits (expandable to 8 with FPC‑7034) |
Source: Bosch FPD-7024 Fire Alarm Control Panel Operation and Installation Guide
All Bosch FPD-7024 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many input points does the FPD-7024 support?
The panel supports four input points, which can be expanded to 255 using the D7039 Multiplex Expansion Module and the FPC‑7034 Four‑Point Expander.
From: Bosch FPD-7024 Fire Alarm Control Panel Operation and Installation Guide
What is the maximum number of user codes that can be programmed?
The panel can store 16 user codes, and this can be increased to 100 when the D7039 expansion module is installed.
From: Bosch FPD-7024 Fire Alarm Control Panel Operation and Installation Guide
