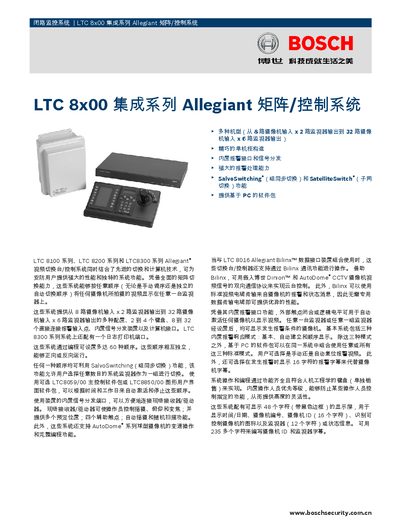

Bosch LTC 8x00 Series Allegiant Matrix/Control System User Manual

User Manual 8 pages · 1.4 MB · ZH

This manual describes the features and operation of the Bosch LTC 8x00 integration series Allegiant matrix/control system, covering the LTC 8100, LTC 8200 and LTC 8300 models. It explains video switching, alarm handling, programming of up to 60 sequences, and integration with Bilinx data interface and AutoDome cameras.

The document includes installation and rack‑mount guidelines, wiring diagrams, connector details, mechanical dimensions, power requirements, and a full technical specification table. Contact information for Bosch security offices in China and Hong Kong is also provided. This manual is written in Chinese.

Read online

Bosch LTC 8x00 specifications

Video inputs (standard)	8‑16‑32
Video outputs	2‑5‑6
Alarm inputs	8‑16‑32
Alarm outputs	2‑5‑6
RS‑232 console ports	1 per model
Input voltage range	108‑253 VAC, 50/60 Hz
Dimensions (LTC 8300)	440 × 305 × 89 mm

Source: Bosch LTC 8x00/90 Allegiant Matrix/Control System User Manual

All Bosch LTC 8x00 documents by type

User Manual 2

Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.

Questions answered in these manuals

Which software packages can be used to program the system?

Programming can be done with the optional LTC 8059/00 main control software package or the LTC 8850/00 GUI software.

From: Bosch LTC 8x00/90 Allegiant Matrix/Control System User Manual

What are the operating temperature limits?

The system operates from 4 °C to 55 °C.
