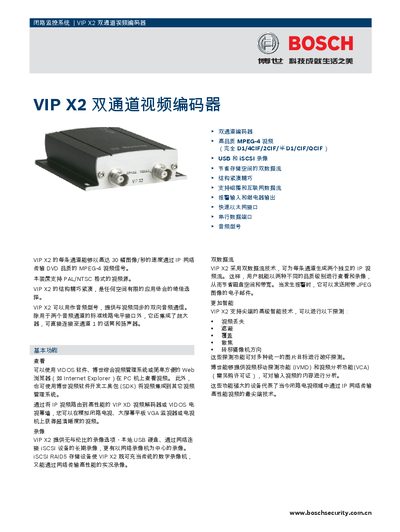

Bosch VIP X2 Dual Channel Video Encoder User Manual
The VIP X2 is a dual‑channel video encoder that captures up to 30 fps MPEG‑4 video streams and supports PAL/NTSC sources. It offers built‑in audio handling, USB and iSCSI storage, and can be integrated with Bosch video management systems via a web browser or SDK.
The device includes Ethernet (10/100Base‑T), RS‑232/422/485, USB, and audio ports, and supports a range of network protocols such as RTP, TCP, UDP and SNMP. Accessories include a rack‑mount kit, power supply, and optional iSCSI RAID5 storage. This manual is written in Chinese.
Bosch VIP X2 specifications
| Video format | MPEG‑4 |
|---|---|
| Video data rate (per channel) | 9.6 kbps‑6 Mbps |
| Maximum resolution | 704 × 576/480 (4CIF/D1) |
| Audio codec | G.711 (300 Hz‑3.4 kHz) |
| Network interfaces | 10/100Base‑T Ethernet, RS‑232/422/485, USB |
| USB ports | 1 |
| Power supply | 12‑24 VDC |
| Operating temperature | -20 °C to 40 °C |
| Supported network protocols | RTP, Telnet, UDP, TCP, IP, HTTP, IGMPv2/v3, ICMP, ARP, SNMP |
All Bosch VIP X2 documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What safety precautions must be followed when installing the VIP X1/X2?
Use only the supplied power unit, never open the housing, install the unit in dry, weather‑protected areas, and disconnect power if a fault occurs.
From: Bosch VIP X1 / VIP X2 Network Video Server Installation Guide
Which network technologies do the VIP X1 and VIP X2 support?
They transmit video and control signals over data networks such as Ethernet LANs and the Internet.
From: Bosch VIP X1 / VIP X2 Network Video Server Installation Guide
What video format and resolutions does the VIP X2 support?
It supports MPEG‑4 video with resolutions up to 704 × 576/480 (4CIF/D1) and lower formats such as 2CIF, CIF, and QCIF.
Which network protocols can be used with the VIP X2?
The encoder supports RTP, Telnet, UDP, TCP, IP, HTTP, IGMPv2/v3, ICMP, ARP and SNMP.
What video format does the VIP X2 support?
The VIP X2 encodes video in the MPEG‑4 format.
Which video resolutions can the VIP X2 handle?
It supports D1 (704×576/480), 4CIF, 2CIF, CIF (352×288/240) and QCIF (176×144/120) at 25/30 fps.
