Start here

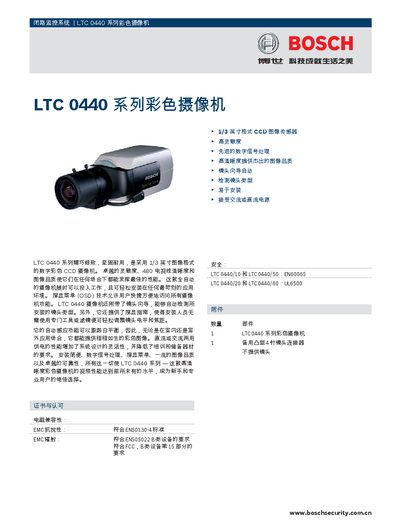

Bosch LTC0440 Series Color Camcorder User Manual
This manual describes the Bosch LTC0440 series color camcorder, a compact 1/3‑inch CCD camera with high sensitivity and digital signal output. It includes details on image quality, power options, safety standards and mechanical dimensions.
The document also lists accessories, power‑supply modules and contact information for Bosch Security in China, along with compliance references such as EN60065 and EN50130‑4. This manual is written in Chinese.
Bosch LTC0440 series specifications
| Image sensor | 1/3‑inch CCD |
|---|---|
| Resolution (PAL) | 752 × 582 pixels |
| Resolution (NTSC) | 768 × 494 pixels |
| Power supply (PAL) | 12 VDC 10.8‑39 VDC, 24 VAC 12‑28 VAC, 50 Hz |
| Power supply (NTSC) | 12 VDC 10.8‑39 VDC, 24 VAC 12‑28 VAC, 60 Hz |
| Minimum illumination (PAL) | 0.40 lux (30 IRE) |
| Minimum illumination (NTSC) | 0.87 lux (30 IRE) |
| Operating temperature | -20 °C to 50 °C |
| Dimensions (H × W × D) | 58 × 66 × 122 mm |
All Bosch LTC0440 series documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What power sources can the LTC0440 camcorder use?
The camcorder can be powered from 12 VDC (10.8‑39 VDC) or 24 VAC (12‑28 VAC) for PAL models, and the same DC range with 24 VAC for NTSC models, at 50 Hz or 60 Hz respectively.
What are the physical dimensions and weight of the LTC0440 series?
The camera measures 58 mm × 66 mm × 122 mm and weighs about 0.45 kg.
What power sources can the LTC0440 camcorder use?
The camcorder can accept both AC and DC power sources.
Which safety certifications apply to the LTC0440/10 and LTC0440/20 models?
LTC0440/10 and LTC0440/50 comply with EN60065, while LTC0440/20 and LTC0440/60 comply with UL6500.
