Start here

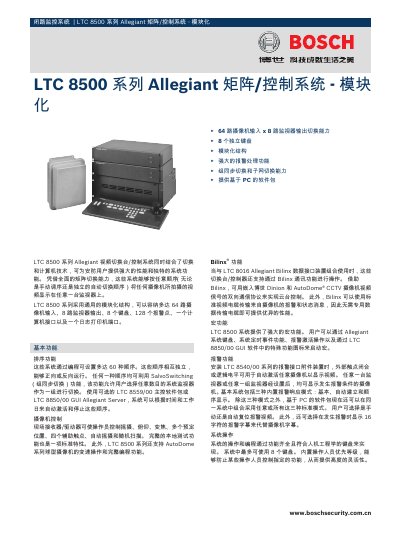

Bosch LTC 8500 Series Allegiant Matrix/Control System Product Leaflet
The Bosch LTC 8500 Series Allegiant Matrix/Control System is a modular video switcher that combines switching and computer technology to provide powerful performance for security users. It supports up to 64 camera inputs, 8 monitor outputs, 8 keyboards, 128 alarm points, a computer interface, and a log printer port. The system allows any camera video to be displayed on any monitor in any order, either manually or via independent automatic switching sequences. This manual is written in Chinese.
Read onlineBosch LTC 8500 specifications
| Video Inputs (Standard) | 64 channels |
|---|---|
| Monitor Outputs | 8 channels |
| Alarm Points | 128 points |
| Video Bandwidth (-3 dB) | 8 MHz (typical) |
| Signal-to-Noise Ratio | Minimum 60 dB |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Maximum Altitude | 3000 meters (10,000 feet) |
Source: Bosch Security Systems LTC 8500 Series Allegiant Matrix/Control System Product Leaflet
All Bosch LTC 8500 documents by type
Questions answered in these manuals
What is the maximum number of cameras this system can handle in a standard configuration?
The system accommodates up to 64 camera inputs.
From: Bosch LTC 8500 Series Allegiant Matrix/Control System Product Leaflet
How many monitors can be connected for output on a basic setup?
A basic setup supports 8 monitor outputs.
From: Bosch LTC 8500 Series Allegiant Matrix/Control System Product Leaflet
Does the system support PC-based programming?
Yes, it provides a PC-based software package for enhanced programming and switching functions.
From: Bosch Security Systems LTC 8500 Series Allegiant Matrix/Control System Product Leaflet
What is the video bandwidth of the LTC 8500 Series?
The typical video bandwidth (-3 dB) is 8 MHz.
From: Bosch Security Systems LTC 8500 Series Allegiant Matrix/Control System Product Leaflet
