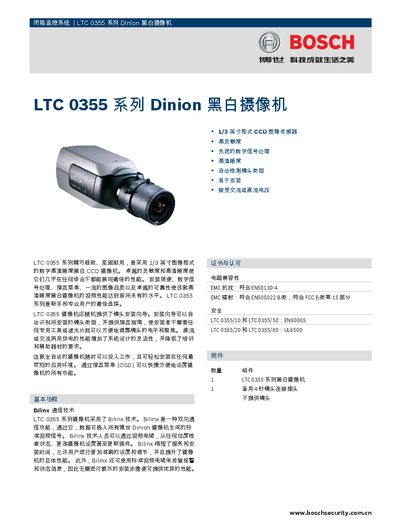

Bosch LTC 0355 Series Dinion Black‑White Camcorder User Manual
This manual describes the Bosch LTC 0355 series Dinion black‑white camcorder, a rugged 1/3‑inch CCD camera designed for security applications. It covers basic functions, Bilinx communication features, and easy tool‑free installation.
The document also lists detailed technical specifications such as power supply options, power consumption, image resolution, operating temperature, humidity ranges, and EMC compliance, along with accessory part numbers and mechanical dimensions. This manual is written in Chinese.
Bosch LTC 0355 series specifications
| Image sensor format | 1/3 inch CCD |
|---|---|
| Resolution | 752 × 582 (horizontal × vertical) |
| Minimum illumination (CCIR) | 0.09 lux (0.009 fc) |
| Power supply (DC) | 12 VDC 10.8‑39 VDC (CCIR) |
| Power supply (AC) | 24 VAC 12‑28 VAC |
| Power consumption | 4 W (excluding accessories) |
| Weight | 0.45 kg (0.99 lb) |
| Operating temperature | -20 °C to 50 °C |
| Dimensions (W × H × D) | 58 mm × 66 mm × 122 mm |
Source: Bosch LTC0355 Series Black and White Camcorder User Manual
All Bosch LTC 0355 series documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What power‑supply options does the LTC0355 camcorder support?
It can be powered from DC 12 V (10.8‑39 V) or from AC 24 V (12‑28 V) depending on the model.
From: Bosch LTC0355 Series Black and White Camcorder User Manual
What are the physical dimensions of the camcorder?
The camcorder measures 58 mm × 66 mm × 122 mm (width × height × depth).
From: Bosch LTC0355 Series Black and White Camcorder User Manual
What communication interface does the LTC 0355 series use?
It uses the Bilinx two‑way communication technology for video signal transmission, remote control, and firmware updates.
From: Bosch LTC 0355 Series Black‑and‑White Camera User Manual
What are the sensor sensitivity levels?
The camera can operate at illumination levels as low as 0.09 lux (0.009 fc) and 0.018 lux (0.0018 fc) depending on the mode.
From: Bosch LTC 0355 Series Black‑and‑White Camera User Manual
What safety standards do the LTC0355/10 and LTC0355/50 models meet?
Both models comply with the EN60065 safety standard.
From: Bosch LTC 0355 Series Dinion Black‑White Camcorder User Manual
What is the operating temperature range of the camera?
The camera operates from –20 °C up to 50 °C.
From: Bosch LTC 0355 Series Dinion Black‑White Camcorder User Manual
