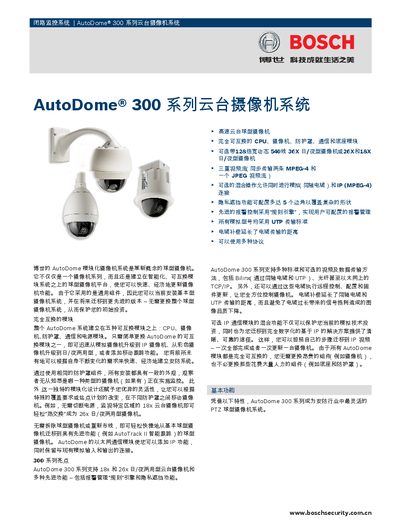

The AutoDome 300 series is a modular dome camera system with fully interchangeable CPU, camera, housing, communication and power modules that lets you rapidly and economically upgrade the functionality of your cameras.
The AutoDome 300 series is a modular PTZ camera system that offers interchangeable CPU, camera, housing, communication and power modules. Users can upgrade from analog to IP, add night‑vision or tracking functions, and customize the system without replacing the entire sphere.
The guide covers system features, alarm management, hybrid analog/IP operation, video streams, environmental ratings, installation methods, technical specifications, and maintenance procedures, helping installers and technicians set up and service the cameras efficiently. This manual is written in Chinese.
| Image sensor (36x model) | 1/4 inch Exview HAD CCD (752 x 582 PAL)/(768 x 494 NTSC) |
|---|---|
| Optical zoom (36x model) | 36x (3.4 – 122.4 mm) |
| Digital zoom | 12x |
| Day sensitivity (36x model) | 0.66 lx (no boost) |
| Night sensitivity (36x model) | 0.0065 lx (boost on) |
| Signal‑to‑noise ratio | >50 dB |
| Video output | 1.0 Vp‑p, 75 Ω |
| Power consumption (analog 18x model) | 10 W |
| IP rating (housing) | IP66 |
| Preset positions | 99 |
The system supports up to 99 preset positions.
It provides two independent MPEG‑4 streams and one JPEG stream.
